G3NA-225B DC5-24 relais statique, commutation au passage par zéro, 25A (charge), 24-240VAC (charge), 5-24VDC (entrée)
G3NA-225B DC5-24 solid state relay with a DC control input and an AC load output for control-panel switching.
Product details

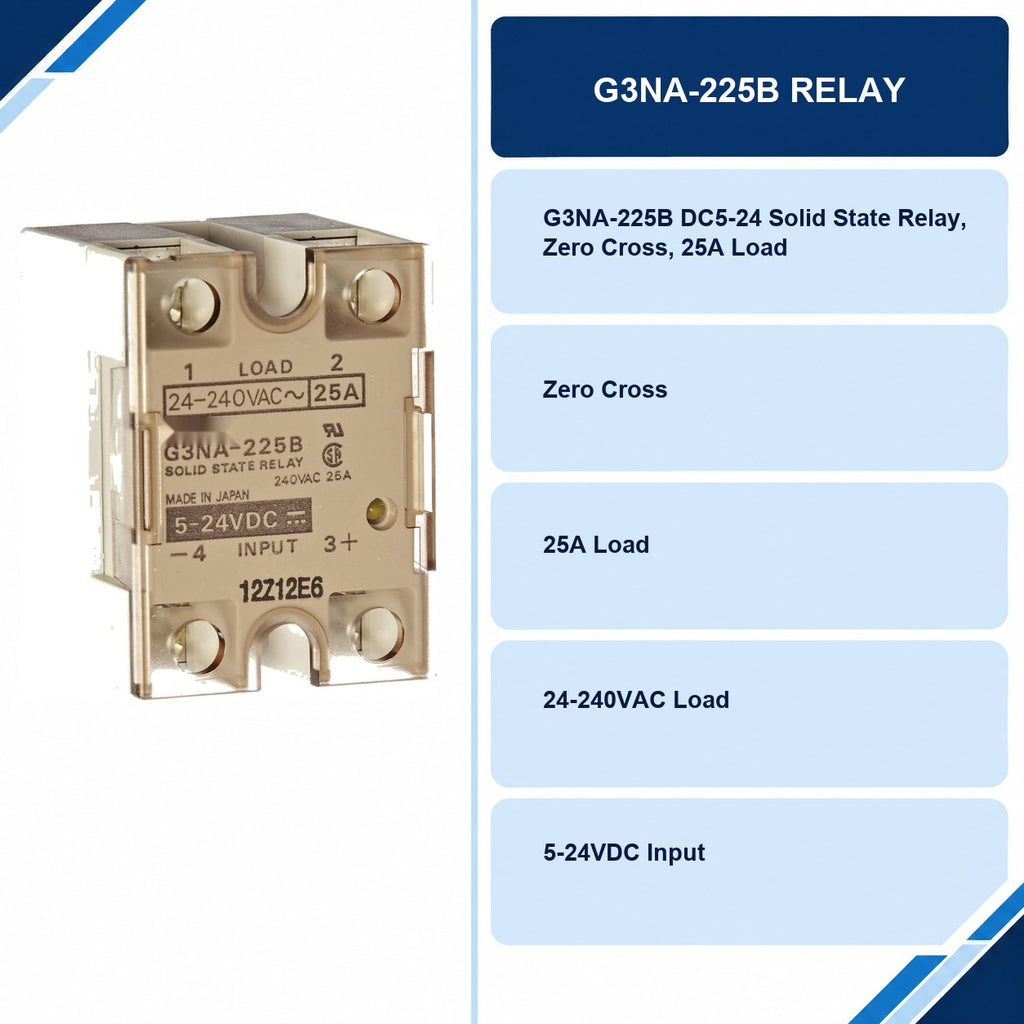

- Model: G3NA-225B DC5-24
- Product type: Solid state relay
- Supply voltage: 5 to 24 V DC control input
- Output: 24 to 240 V AC load
- Electrical rating: 25 A nameplate current rating
- Input terminal markings: 3 (+), 4 (−)
- Load terminal markings: 1 and 2
G3NA family ratings and heat-sink reference
Check input and cooling
This DC-input version switches an AC load, not a DC load. Match the full model suffix and control voltage. Do not treat the 25 A nameplate as a no-heat-sink operating rating: allowable load depends on heat sinking and ambient temperature. Use the manufacturer's ratings for the exact version and installation.
Check my relay model and load.
G3NA-225B manufacturer technical reference, 1999 edition, third-party hosted (PDF). This reference does not verify the supplied item.
