H3DK-M2 Multifunction Timer, 24-240V AC/DC, DPDT, 1 Unit

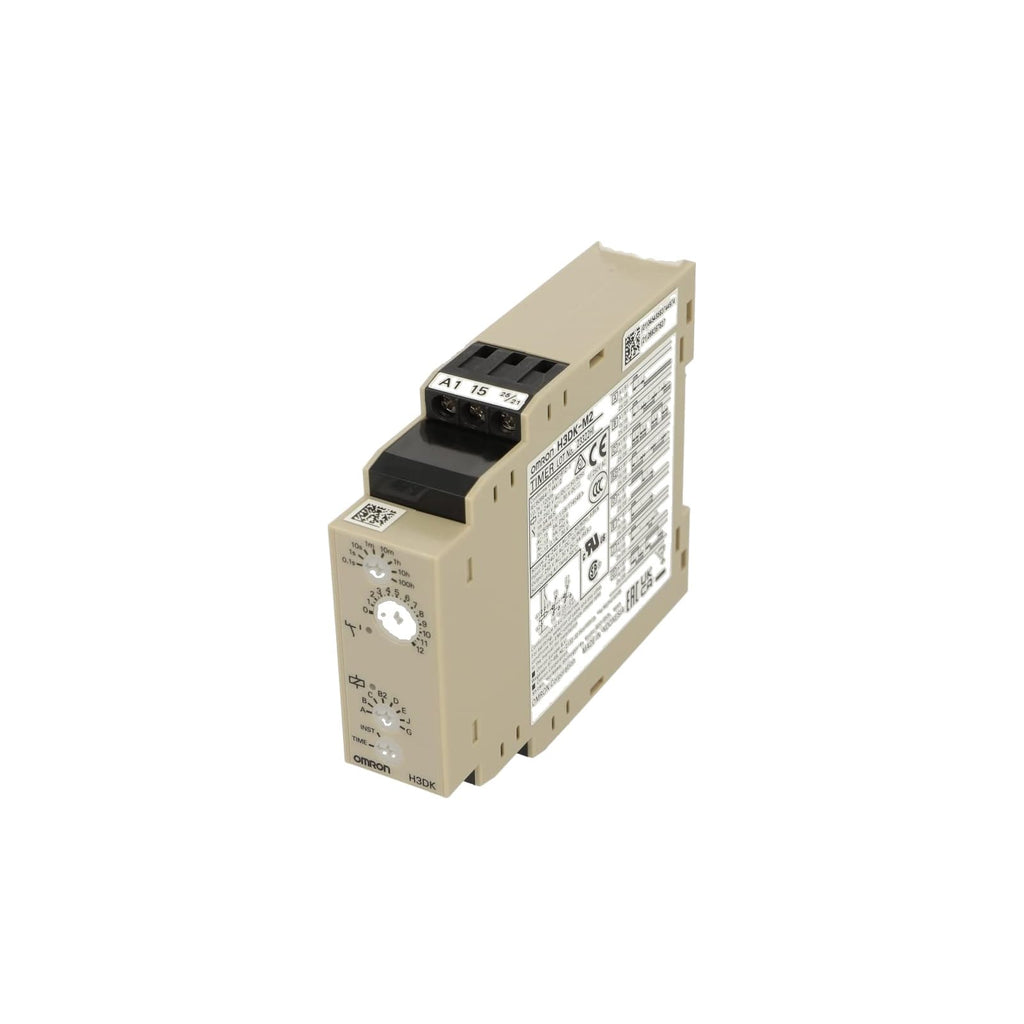

H3DK-M2 multifunction timer with eight operating modes and DIN-rail mounting. Supplied as 1 timer unit.
Product details
- Model: H3DK-M2 (H3DKM2)
- Brand: Omron
- Supply: 24-240 V AC/DC
- Operating modes: 8 modes, including on-delay, off-delay, flicker, interval and one-shot
- Control output: Selectable time-limit DPDT, or time-limit SPDT plus instantaneous SPDT
- Connections: 9 screw terminals
- Mounting: DIN rail
- Pack contents: 1 timer
H3DK-M2 model specifications and output options
Match the mode and output setting
The output selector changes between two timed changeover contacts and one timed plus one instantaneous contact. Match both the operating mode and this output setting to your existing circuit. Confirm the voltage-input wiring and terminal assignments; H3DK-M2 is a DIN-rail timer with screw terminals, not an 8-pin plug-in timer.
Check my timer and operating sequence · Timer selection guide
Omron H3DK timer reference (PDF). Match the full model, configuration and package; this manufacturer reference does not verify the supplied item.
