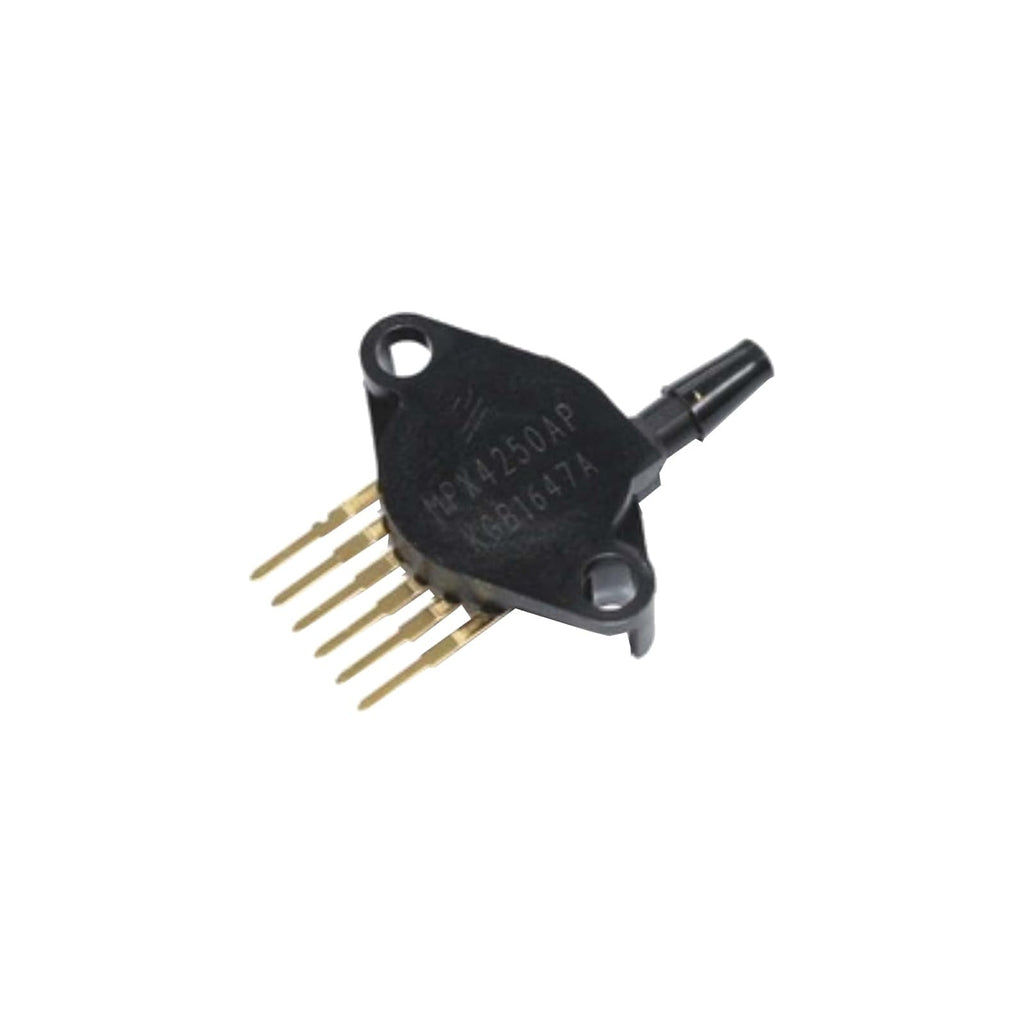

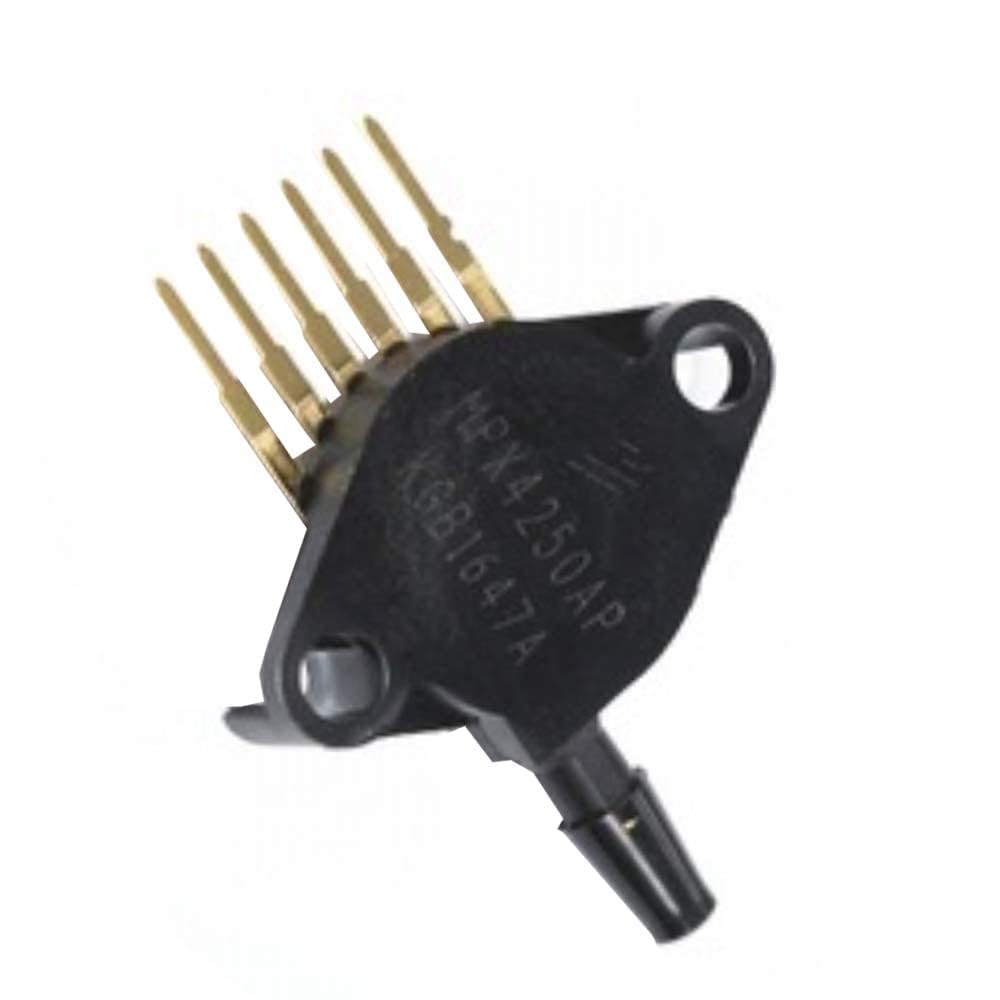

MPX4250AP capteur de pression absolue, 20–250 kPa, sortie analogique
MPX4250AP absolute pressure sensor with a conditioned analog voltage output for pressure-measurement electronics.
Product specifications
- Model / MPN: MPX4250AP
- Pressure reference: absolute
- Measuring range: 20–250 kPa absolute (approximately 2.9–36.3 psi)
- Supply: 4.85-5.35 V DC (5.1 V nominal)
- Output: approximately 0.2-4.9 V analog voltage at 5.1 V supply; ratiometric
- Package: single pressure port, six-lead through-hole unibody
- Signal conditioning: on-chip temperature compensation and calibration
Technical model reference: MPX4250AP product information.
Check before ordering
This is an absolute-pressure sensor, not a gauge or differential-pressure model. Match the complete MPX4250AP part number, single-port package, supply and pinout to your circuit.
Need differential pressure? Compare MPX4250DP, 0–250 kPa differential. AP and DP use different pressure references and are not interchangeable.
Manufacturer performance and reliability tests use dry air. Other media require compatibility confirmation; do not assume direct suitability for liquids.
MPX4250AP technical reference — Freescale Rev. 6 (2006), hosted by DigiKey (PDF). This is an earlier edition; compare with the current manufacturer documentation.
