MPX5010DP 0-10 kPa capteur de pression différentielle, analogique 5V

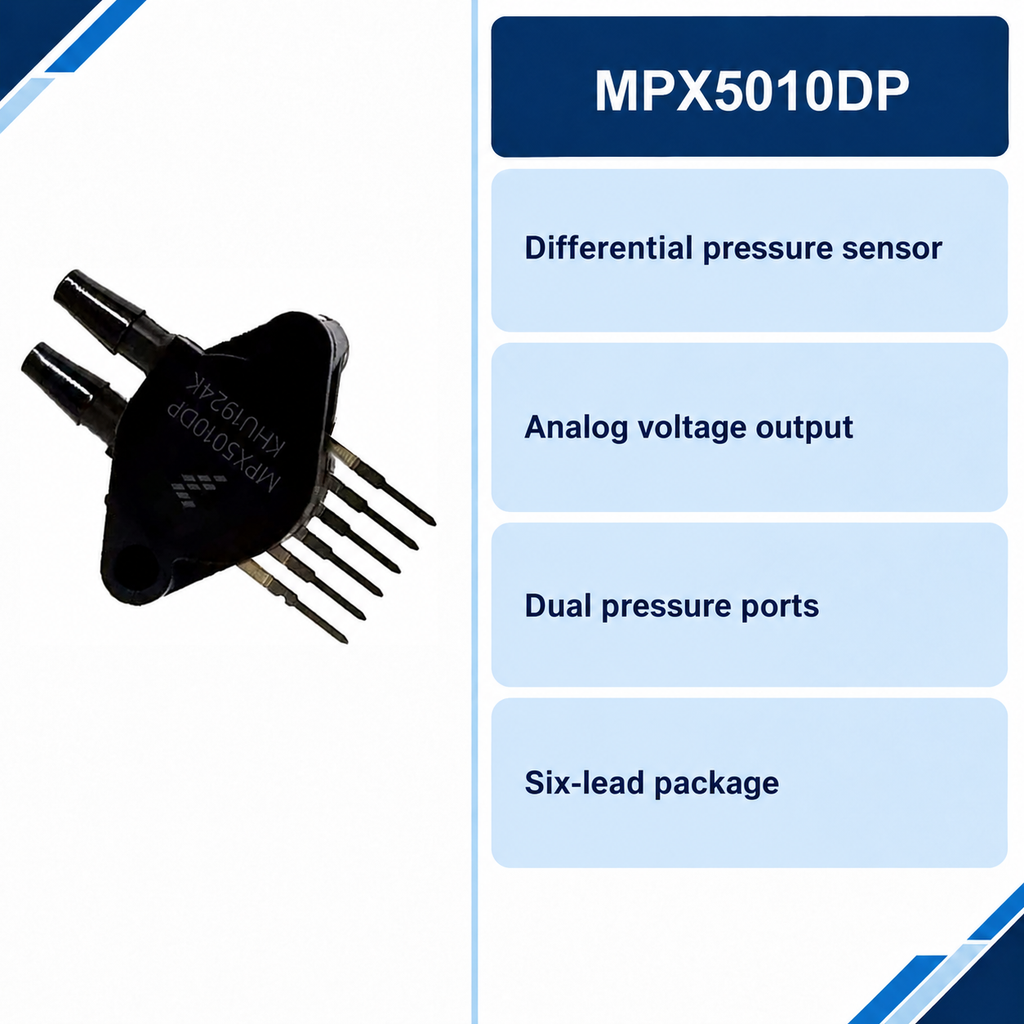

MPX5010DP differential pressure sensor
The MPX5010DP is a piezoresistive silicon pressure sensor with an on-chip conditioned analog voltage output proportional to the applied pressure. The dual-port body provides connections for differential pressure measurement.
Product details
- Model: MPX5010DP
- Measurement range: 0 to 10 kPa (differential)
- Supply voltage: 4.75 to 5.25 V DC (5.0 V nominal)
- Output: conditioned analog voltage
- Construction: epoxy unibody with two pressure ports
- Connection: six-lead through-hole package
Available from West Control Supply with tracked delivery and 30-day returns.
Match the signal and package
At a 5 V supply, the manufacturer's typical output is 0.2 V at zero differential pressure and 4.7 V at 10 kPa. This is a voltage-output component, not a 4–20 mA transmitter. Match the 6-lead MPX5010DP package, port orientation and pinout to your circuit; the 8-terminal MPXV5010DP uses a different package. Check the datasheet's media-compatibility guidance for your application.
Freescale MPX5010 historical reference (PDF; distributor-hosted). Match the full model, configuration and package; this manufacturer reference does not verify the supplied item.
