MPX5100DP capteur de pression différentielle à deux ports, 0–100 kPa, sortie analogique

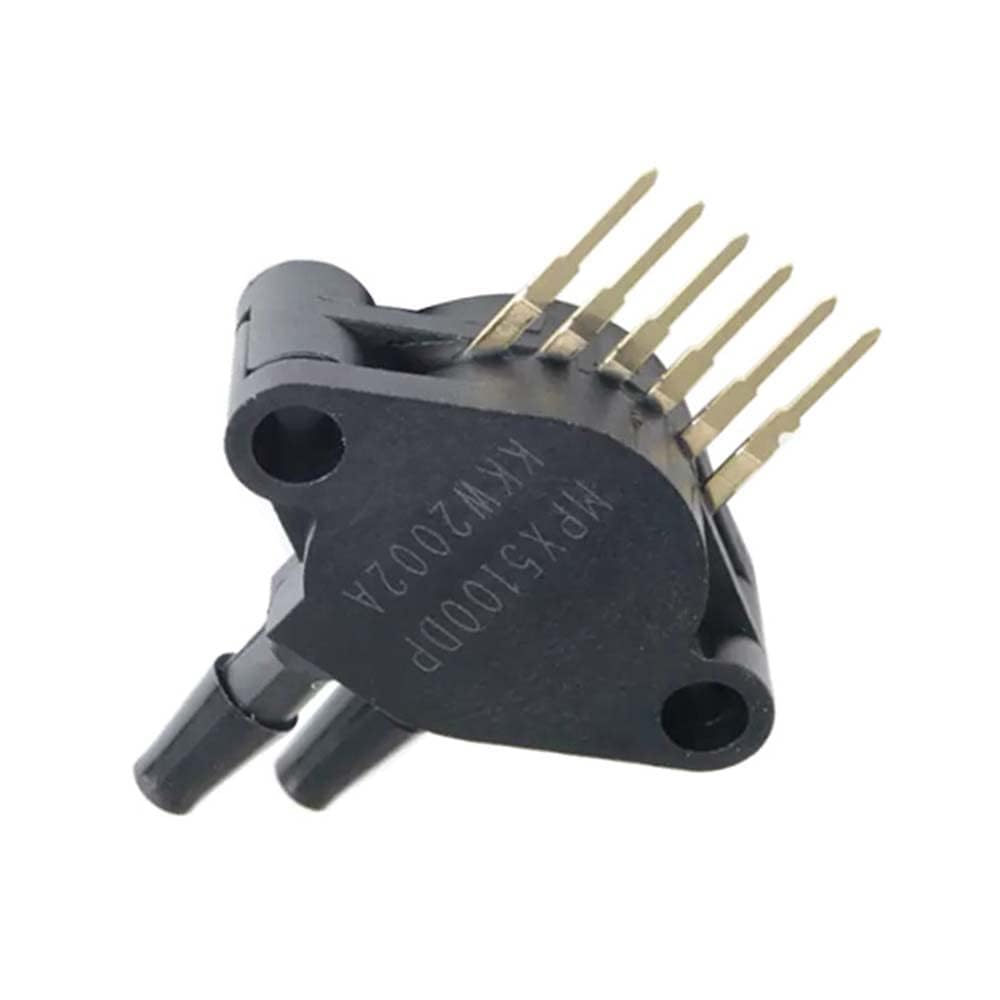

MPX5100DP dual-port differential pressure sensor with a conditioned analog voltage signal for pressure measurement.
- Model: MPX5100DP.
- Measuring range: 0–100 kPa differential pressure.
- Output: nominal 0.2–4.7 V analog voltage with a 5 V DC supply.
- Supply range: 4.75–5.25 V DC.
- Construction: epoxy unibody, dual pressure ports and six leads.
- Signal conditioning: on-chip temperature compensation and calibration.
Check your application
Manufacturer performance and reliability tests use dry air. Do not assume direct compatibility with water, oil or other liquids; confirm the media and application with the manufacturer before use.
This is a differential-pressure sensor with a voltage output, not a 4-20 mA pressure transmitter. Match the full model, pressure reference, range, supply and pinout. Send your equipment model or old-part label for a model check.
Technical model reference: MPX5100 manufacturer datasheet · MPX5100DP six-lead pinout (page 3, Figure 2 / Table 1).
Alternate MPX5100DP reference — Freescale Rev. 13 (2010), hosted by ICGOO (PDF). This is an earlier edition; compare with current manufacturer documentation.
