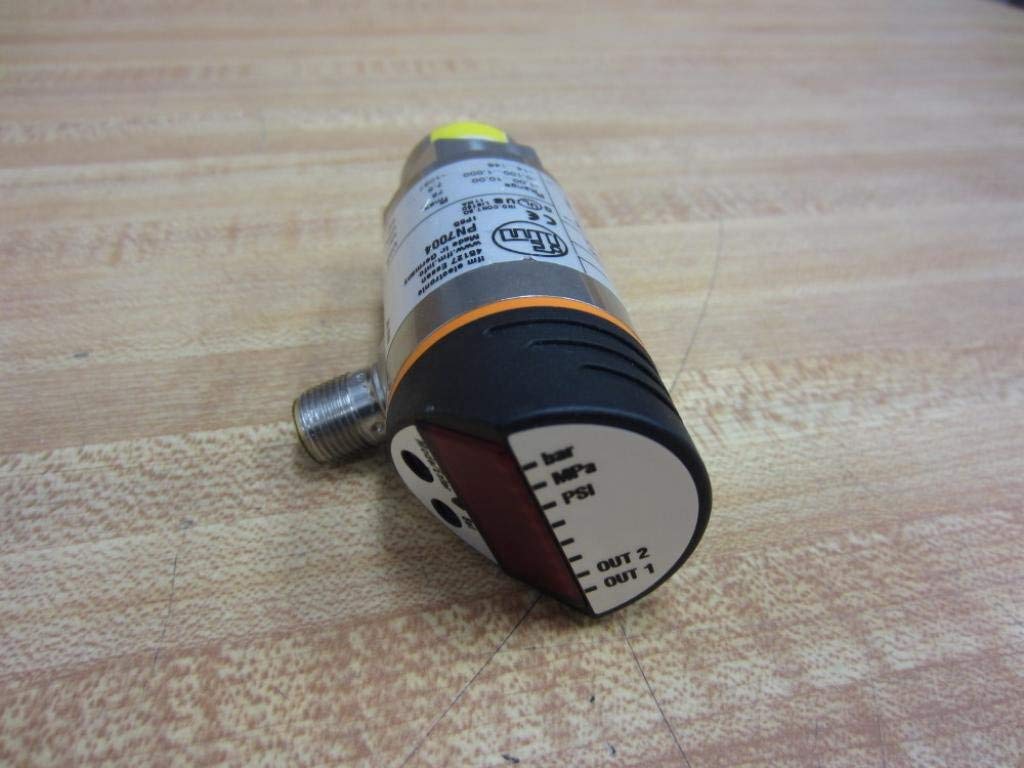

Efector PN7004 capteur de pression PN-010-RBR14-QFRKG/US//V
$317.30 AUD
Passer aux informations sur le produit
Retours sous 30 jours
Garantie de 12 mois
Livraison suivie
Vérification gratuite du modèle
Paiement sécurisé
Question sur cet article
Service après-vente 24 h/24, 7 j/7
Assistance téléphonique 24 h/24, 7 j/7 · Réponse par e-mail généralement sous 1 jour ouvré
Product characteristics
| Output signal | switching signal; IO-Link; (configurable) |
|---|---|
| Measuring range | -1...10 bar -14.5...145 psi -0.1...1 MPa |
| Process connection | threaded connection G 1/4 internal thread |
Application
| Special feature | Gold-plated contacts |
|---|---|
| Application | for industrial applications |
| Media | liquids and gases |
| Medium temperature [°C] | -25...80 |
| Min. bursting pressure | 150 bar 2175 psi 15 MPa |
| Pressure rating | 75 bar 1087 psi 7.5 Mpa |
| Type of pressure | relative pressure |
Electrical data
| Operating voltage [V] | 18...36 DC; (according to EN 50178 SELV/PELV) |
|---|---|
| Current consumption [mA] | < 35 |
| Min. insulation resistance [MΩ] | 100; (500 V DC) |
| Protection class | III |
| Reverse polarity protection | yes |
| Overvoltage protection | yes; (< 40 V) |
| Power-on delay time [s] | 0.3 |
| Integrated watchdog | yes |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 2 |
|---|
Outputs
| Total number of outputs | 2 |
|---|---|
| Output signal | switching signal; IO-Link; (configurable) |
| Electrical design | PNP/NPN |
| Number of digital outputs | 2 |
| Output function | normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC [V] | 2 |
| Permanent current rating of switching output DC [mA] | 250 |
| Switching frequency DC [Hz] | < 170 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
Measuring/setting range
| Measuring range | -1...10 bar -14.5...145 psi -0.1...1 MPa |
|---|---|
| Set point SP | -0.9...10 bar -12...145 psi -0.09...1 MPa |
| Reset point rP | -0.95...9.95 bar -13...144 psi -0.095...0.995 MPa |
| In steps of | 0.05 bar 1 psi 0.005 MPa |
| Factory setting | SP1 = 2.50 bar rP1 = 2.30 bar SP2 = 7.50 bar rP2 = 7.30 bar |
Accuracy / deviations
| Switch point accuracy [% of the span] | < ± 0,5 |
|---|---|
| Repeatability [% of the span] | < ± 0,1; (with temperature fluctuations < 10 K) |
| Characteristics deviation [% of the span] | < ± 0,25 (BFSL) / < ± 0,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting) |
| Hysteresis deviation [% of the span] | < ± 0,25 |
| Long-term stability [% of the span] | < ± 0,05; (per 6 months) |

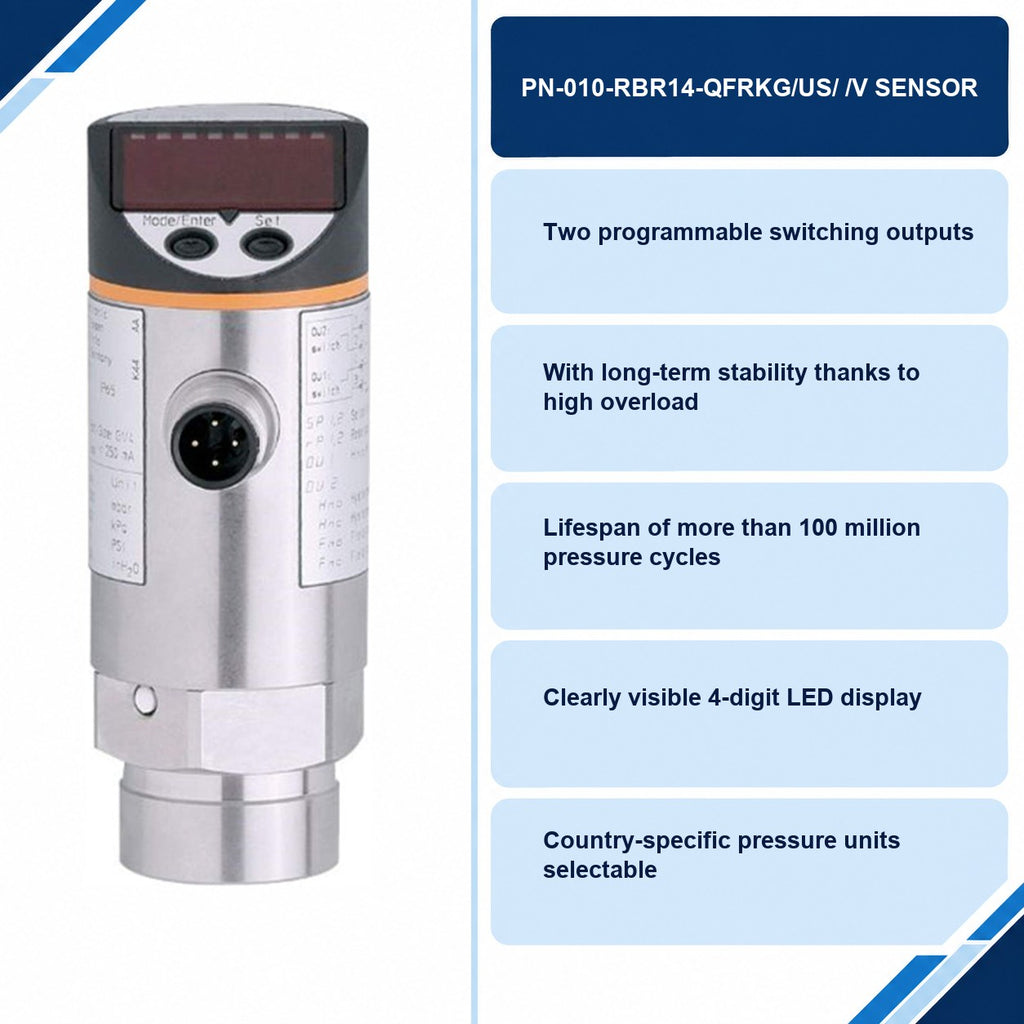

- Two programmable switching outputs
- With long-term stability thanks to high overload protection
- Lifespan of more than 100 million pressure cycles
- Clearly visible 4-digit LED display
- Country-specific pressure units selectable
