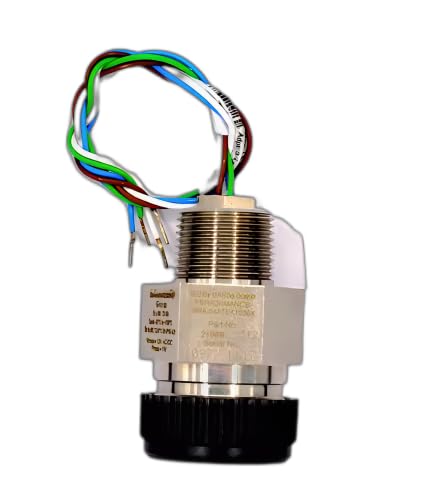

Sensepoint 2106B2310 HT Flammable Sensor (ATEX) M20

2106B2310 Sensepoint Hazardous Area Approved Gas Detector, HT Flammable Sensor (ATEX) M20 The Sensepoint range of flammable, toxic, and Oxygen gas detectors offers users a high-quality, low-cost solution to their industrial gas monitoring needs. Installation in potentially explosive atmospheres is made by using a suitable Ex d or Ex e approved junction box. The industry-standard outputs from Sensepoint are connected to either a choice of controllers or 3rd party DCS/PLC systems. Both flammable and toxic versions are certified to the latest ATEX/IECEx safety and performance standards. The flammable detector is available in either % LEL or PPM detection range versions and provides an industry-standard mV bridge output. Typical life expectancy is greater than 5 years, after which the detector is simply replaced with a new one. The toxic detectors are supplied pre-calibrated for easy installation and provide an industry-standard 2 wire 4-20mA loop output. User connections are Ex d, while front-end Intrinsic Safety (IS) design allows for easy exchange of the replaceable sensor while powered. IS design also removes the need for a sinter enabling very fast speed of response and detection of 'sticky' gases such as Chlorine and Ammonia. Sensepoint has proven its suitability across a wide range of demanding applications by delivering high performance and reliability at an affordable cost. Fit For Purpose Flammable, toxic, and Oxygen versions available High performance, low cost Suitable for new and retrofit applications Proven Sensor Technology Surecell™ electrochemical sensors Poison-resistant catalytic bead Fast and reliable Typical 2 to 5 years operational life ATEX/IECEx Certified Complies with the latest standards Hazardous area approval and performance IP65/67 for use in harsh environments Easy to Use Factory set operation Simple to replace Minimal training required Range of Accessories Weatherproof cap Flow adaptor Duct mounting kit Collecting cone

• Fit For Purpose
• Flammable, toxic, and Oxygen versions available
• High performance, low cost
• Fast and reliable
