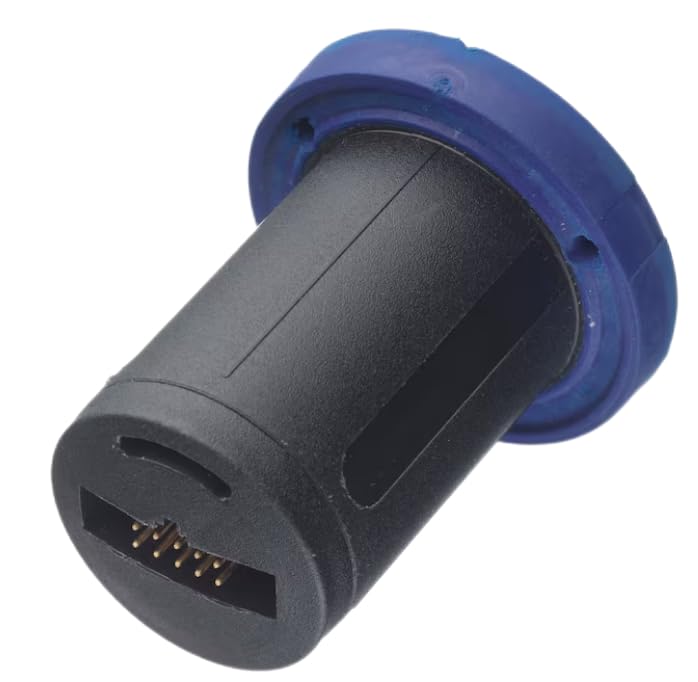

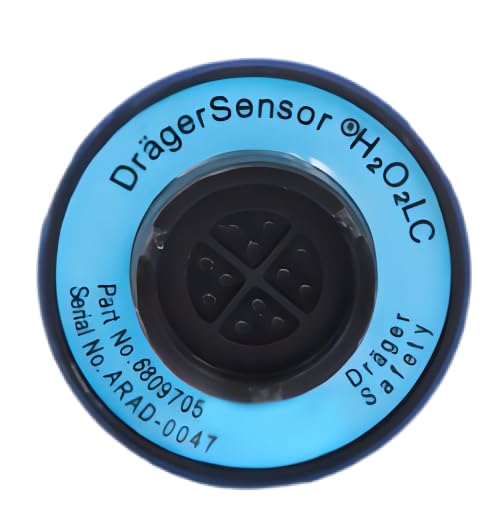

6809705 Drager Sensor H2O2 LC

This Drager Sensor detects levels of low concentration Hydrogen Peroxide (H2O2) in the ambient air. It's an electrochemical sensor, suitable for use in Drager's Fixed Gas Detection Systems, including the PointGard 2100. More information can be found in the technical note in our downloads section. Default Settings Measured Gas: Hydrogen Peroxide Display: (H2O2) Chem. Symbol: H2O2 CAS number: 7722-84-1 Measuring Range Limit Default: 5ppm Adjustment Range Min/Max: 1/300ppm Calibration Interval Default: 6 months Adjustment Range Min/Max: 1 day/12 months Warm-up Time Ready for operation after max.: 30 mins Ready for calibration after max.:720 mins When using SensorReady: <5 minutes Detection Limit*: 0.1ppm Measurement Accuracy* (measurement uncertainly (of meas. value) or minimum (whichever is greater value)) ≤ ±5 % ≤ ±0.05ppm Alarm response time * (on gas exposure with 5x alarm threshold, t0...20 with 1.6x alarm threshold, t0...63 ≤5 seconds ≤15 seconds Loss of sensitivity, per year ≤ –3 %

• Measured Gas: Hydrogen Peroxide
• Display: (H2O2)
• CAS number: 7722-84-1
• Adjustment Range Min/Max: 1/300ppm
