EE-SX671A Slot-Type Photomicrosensor, 5 mm Slot, NPN Open-Collector, L-Shaped (1 Count)

This listing is for a slot-type photomicrosensor compatible with the EE-SX671A form factor. The L-shaped, through-beam design provides a 5 mm slot for interrupter-style detection. Electrical characteristics reported for this model include NPN open-collector output, 24 V class operation with up to ~100 mA switching capacity, and a response frequency near 3 kHz. The emitter uses an infrared wavelength near 940 nm and the sensing aperture is small (about 0.8 mm) for precise detection. Sold as a single sensor; please confirm physical fit and electrical compatibility with your equipment before installation.

• Compatibility: Replacement for EE-SX671A slot-type photomicrosensor; designed to fit equipment that uses the EE-SX671A form factor-confirm fit with your device before ordering.
• Sensing style: Slot / through-beam, L-shaped body with a 5 mm slot opening suitable for interrupter-style detection.
• Electrical/output: NPN open-collector output; rated for 24 V class operation with a switching/load capacity commonly listed at up to 100 mA.
• Performance: Infrared LED emitter (~940 nm) with a reported response frequency around 3 kHz and a small aperture (≈0.8 mm) for fast, narrow-beam detection.

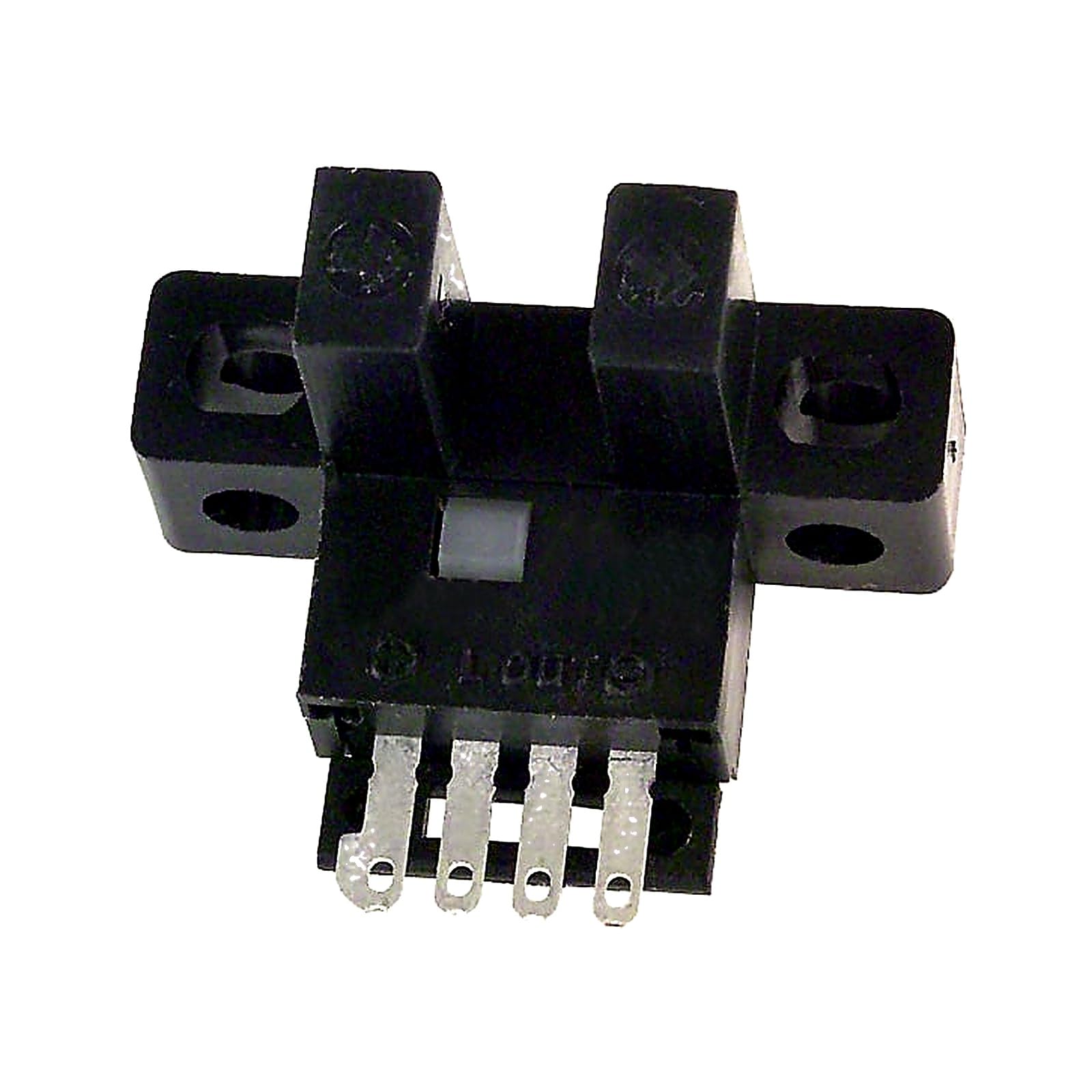

• Package & notes: Sold as a single sensor (1 count). Images show the sensor body and printed model marking; connector, cable, or additional mounting hardware are not confirmed as included.
