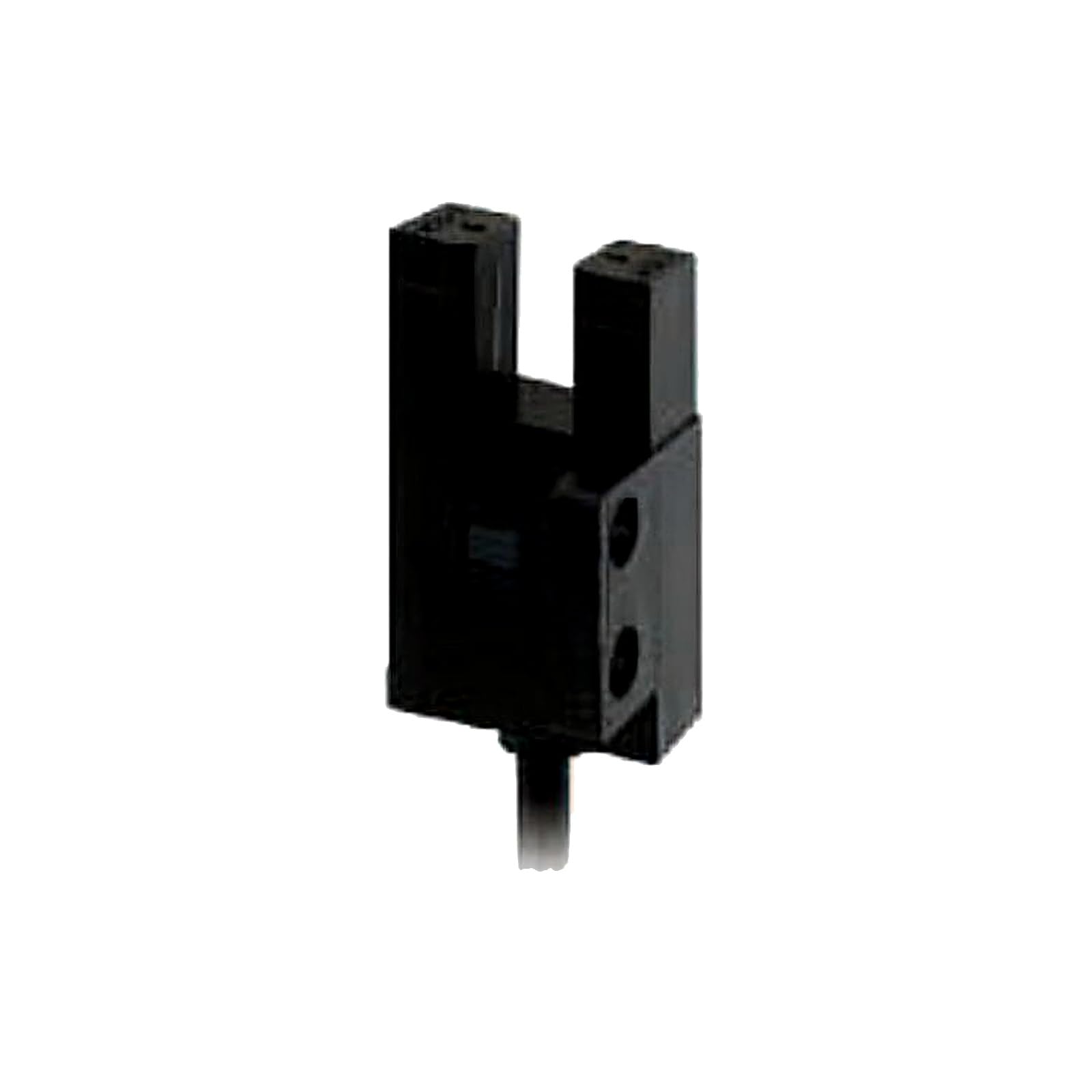

EE-SX673P-WR Slot-type Photomicrosensor, Through-beam 5 mm Slot, PNP Open-collector, Pre-wired 1 m

The EE-SX673P-WR is a slot-type through-beam photomicrosensor from the EE-SX67 family, offered here as a single pre-wired unit. The module features a 5 mm slot opening suitable for detecting small opaque parts (typical minimum target ~2 × 0.8 mm). It uses an infrared emitter (≈940 nm) and provides a PNP open-collector output with selectable Dark-ON / Light-ON operation. The sensor accepts a wide supply range of 5-24 VDC and is specified for high-speed switching (minimum ~1 kHz, typical ~3 kHz), making it suitable for many industrial sensing and position-detection tasks. The WR suffix denotes a pre-wired cable (1 m) for quick installation. Because EE-SX67 family variants differ by output polarity (PNP vs NPN) and connector/wire options, confirm the exact model suffix and output polarity before final installation to ensure fitment.

• Exact model: EE-SX673P-WR slot-type photomicrosensor - through-beam (slot) style for EE-SX67 series applications.
• Sensing format: 5 mm slot width (≈0.197 in) designed to detect small opaque objects (typical minimum target ≈ 2 × 0.8 mm).
• Output & operation: PNP open-collector output with selectable Dark-ON / Light-ON logic for flexible wiring.
• Electrical & response: Operates on 5-24 VDC and provides high-speed switching (typical response frequency ≥ 1 kHz; commonly ~3 kHz).
• Installation & packing: WR suffix indicates pre-wired variant with 1 m attached cable for straightforward integration; sold as a single photomicrosensor unit.
