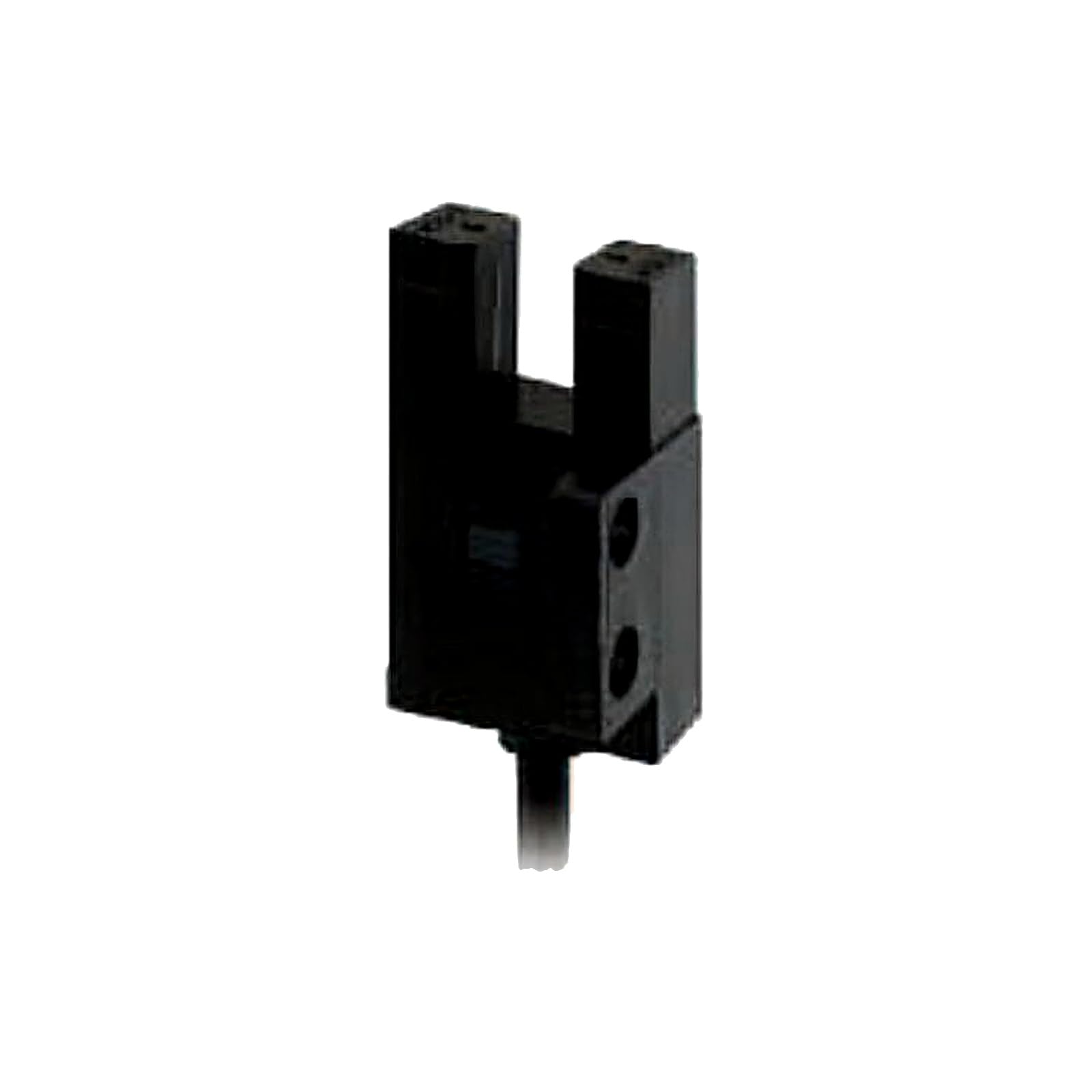

EE-SX676P-WR Slot Photomicrosensor, 5 mm Slot, PNP Output, 1 m Pre-Wired

EE-SX676P-WR is a slot-type photomicrosensor (photointerrupter) intended for through-beam detection in compact automation and printer applications. The module uses a 5 mm slot aperture and provides a PNP (sourcing) transistor output. It accepts a DC supply typically in the 5-24 V range and offers selectable Light-ON or Dark-ON output behavior. The WR suffix denotes the pre-wired 1 m cable version for direct drop-in replacement. Typical supply current references show ~12 mA for connector variants and up to ~30-35 mA for some pre-wired variants; refer to product datasheet or supplier documentation for exact operating currents and wiring details. Confirm the exact model code, output polarity, and wiring before installation to ensure fitment.

• Fits EE-SX67-series slots - exact model EE-SX676P-WR pre-wired photomicrosensor for slot/through-beam detection.
• 5 mm slot aperture for through-beam detection - suitable for detecting small opaque targets across the slot.
• PNP transistor output; rated supply range 5-24 V DC and selectable Light-ON / Dark-ON operation for flexible logic behavior.
• Pre-wired WR variant with 1 m cable for direct replacement and easier installation; red indicator LED for alignment/status.
• Sold as a single photomicrosensor unit (1). Confirm model and wiring polarity before installation to ensure compatibility.
