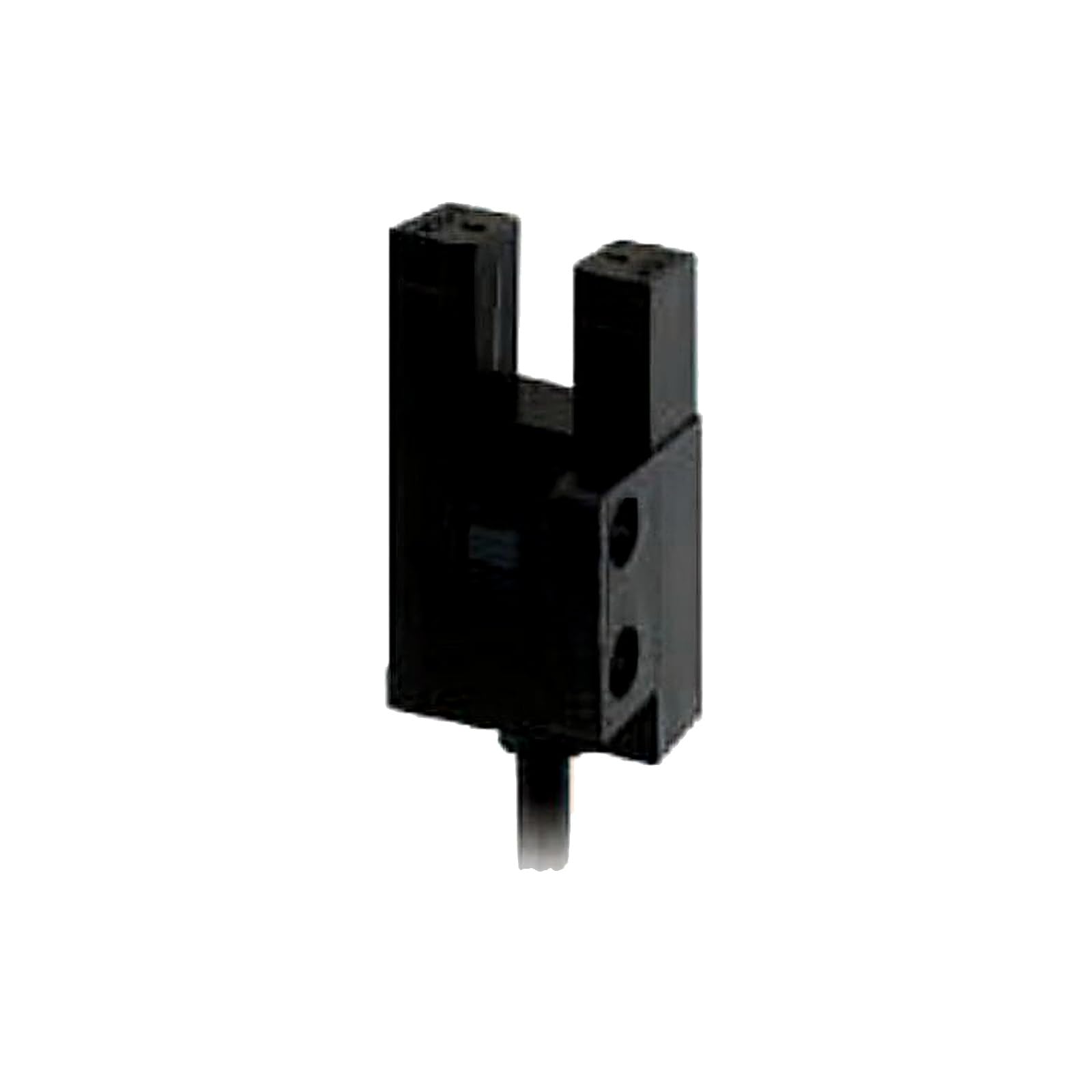

EE-SX677-WR Slot-Type Photomicrosensor, Through-Beam NPN Output, Pre-wired 1 m Cable

The sensor provides NPN open-collector output and operates on DC 5-24 V with load current capability up to 100 mA, making it suitable for direct connection to typical PLC and relay inputs. The grooved 5 mm slot accepts small opaque targets and uses an IR emitter near 940 nm for through-beam detection. The molded housing includes a red indicator LED for status. Please confirm output type (NPN vs PNP) and cable length requirements before ordering, as related series variants and suffixes indicate different output polarities and wiring styles.

• Replacement for EE-SX677 series slot-type (grooved) through-beam photomicrosensor - model EE-SX677-WR (-WR indicates pre-wired cable).
• NPN open-collector output suitable for DC control inputs; common operating voltage range DC 5-24 V and load current up to 100 mA.
• 5 mm slot width designed for through-beam detection of small opaque targets; uses an infrared emitter (≈940 nm) for reliable sensing.
• Compact molded housing (approx. 2 x 2 x 2 cm / 0.787 x 0.787 x 0.787 in) with red indicator LED; sold as a single sensor unit.
• Replacement sensor listing; instrument family and connector format stated in the title and specs.
