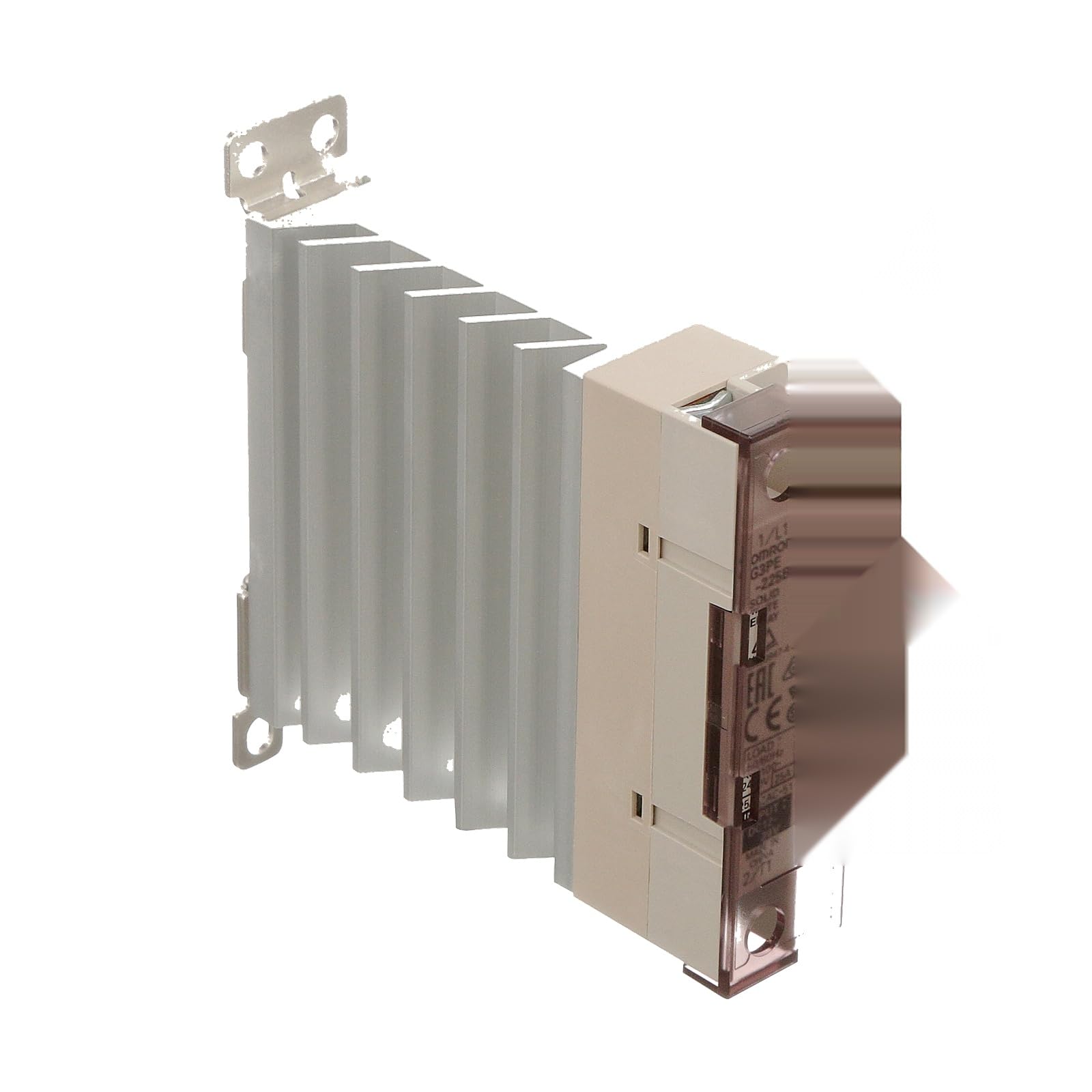

G3PE-235B DC12-24V Solid State Relay SSR, Single-Phase Solid State Relay For Heater/Load Control, 35A 100-240VAC Load, 12-24VDC Input, Zero Cross, Screw Terminal, 1 Unit

G3PE-235B DC12-24V Solid State Relay SSR, Single-Phase Solid State Relay For Heater/Load Control, 35A 100-240VAC Load, 12-24VDC Input, Zero Cross, Screw Terminal, 1 Unit. This listing is for model G3PE-235B DC12-24V, a single-phase solid state relay used for industrial service, MRO maintenance, heater circuits, and exact-model replacement in control panels. Verify load current, load voltage, control input voltage, terminals, mounting space, ventilation, and temperature derating before purchase. Included components: 1 selected unit.

• Exact-model G3PE-235B DC12-24V SSR for replacement by model code; single-phase solid state relay for heater and resistive-load control.
• Key rating: 35A 100-240VAC Load, 12-24VDC control input, 100-240VAC output, and zero-cross switching function.
• Compact integrated heat-sink body with screw terminals, operation indicator, and DIN-track or screw mounting for control panels.
• Usable load current depends on ventilation, ambient temperature, and thermal derating; verify short-circuit protection before installation.
• Includes 1 selected solid state relay only; wiring, DIN rail, screws, technical manual, and unlisted accessories are not included.
