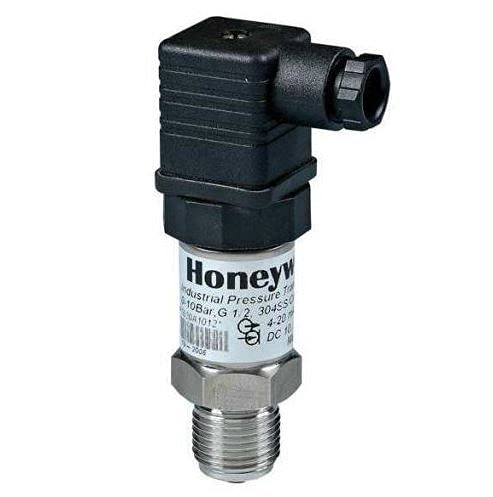

General Pressure Transducers GPT Series 35MPa / 350Bar

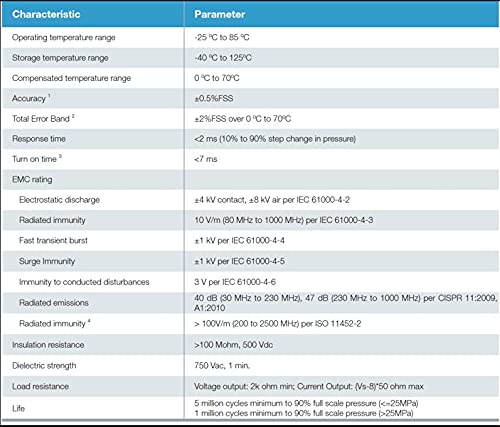

GPT Series Pressure Transducers use piezoresistive sensing technology with ASIC (Application Specific Integrated Circuit) signal conditioning in a stainless steel housing with electrical connector. The GPT Series are fully calibrated including temperature compensation from 0º C to 70ºC. • Fully media isolated • Pressure range: 5MPa to 35MPa (absolute and sealed gage) • Output: 0-10 Vdc, 1 to 6Vdc, 4-20mA or 0.5Vdc to 4.5Vdc • Fully calibrated and temperature compensated • Total Error Band: ±2.0 %FSS from 0 °C to 70 °C • Insulation resistance: >100 Mohm, 500 Vdc • Dielectric strength: 750 Vac, 1 min. • EMC: Heavy Industrial Level • Ingress protection up to IP67 • Response time: <2 ms • RoHS, REACH, and CE compliant

• Fully media isolated
• Pressure range: 5MPa to 35MPa (absolute and sealed gage)
• Output: 0-10 Vdc, 1 to 6Vdc, 4-20mA or 0.5Vdc to 4.5Vdc
• Fully calibrated and temperature compensated
• Total Error Band: ±2.0 %FSS from 0 °C to 70 °C
