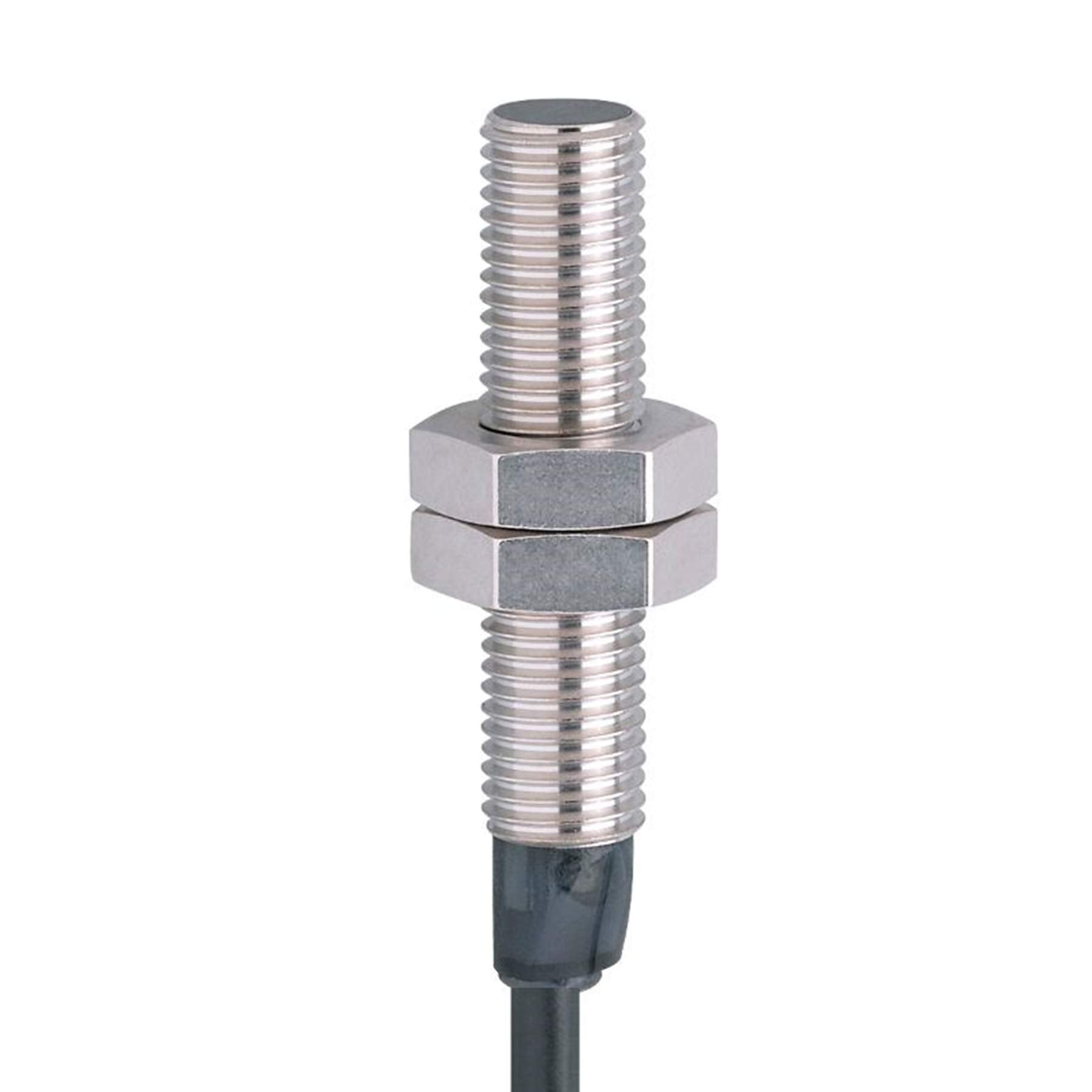

IFM IE9203 Inductive sensor

Product characteristics Electrical designPNP/NPN Output functionnormally open Sensing range [mm]2 Housingthreaded type Dimensions [mm]M8 x 1 / L = 42 Electrical data Operating voltage [V]10...55 DC Protection classIII Reverse polarity protectionyes Outputs Electrical designPNP/NPN Output functionnormally open Max. voltage drop switching output DC [V]4.5 Minimum load current [mA]5 Max. leakage current [mA]0.6 Permanent current rating of switching output DC [mA]100 Switching frequency DC [Hz]1000 Short-circuit protectionyes Type of short-circuit protectionpulsed Overload protectionyes Detection zone Sensing range [mm]2 Real sensing range Sr [mm]2 ± 10 % Operating distance [mm]0...1.62 Accuracy / deviations Correction factorsteel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3 Hysteresis [% of Sr]3...15 Switch point drift [% of Sr]-10...10 Operating conditions Ambient temperature [°C]-25...80 ProtectionIP 67 Tests / approvals EMC EN 60947-5-2 EN 55011class B MTTF [years]2460 Mechanical data Weight [g]45.4 Housingthreaded type Mountingflush mountable Dimensions [mm]M8 x 1 / L = 42 Thread designationM8 x 1 Materialsbrass white bronze coated Displays / operating elements Display switching status1 x LED, red Accessories Accessories (supplied) lock nuts: 2 Remarks Pack quantity1 pcs. Electrical connection ConnectionCable: 2 m, PUR; 2 x 0.14 mm²

• Particularly short housing
• For use where space is restricted
• Robust metal housing for use in harsh industrial environments
• Very high switching frequency
• Two-wire technology
