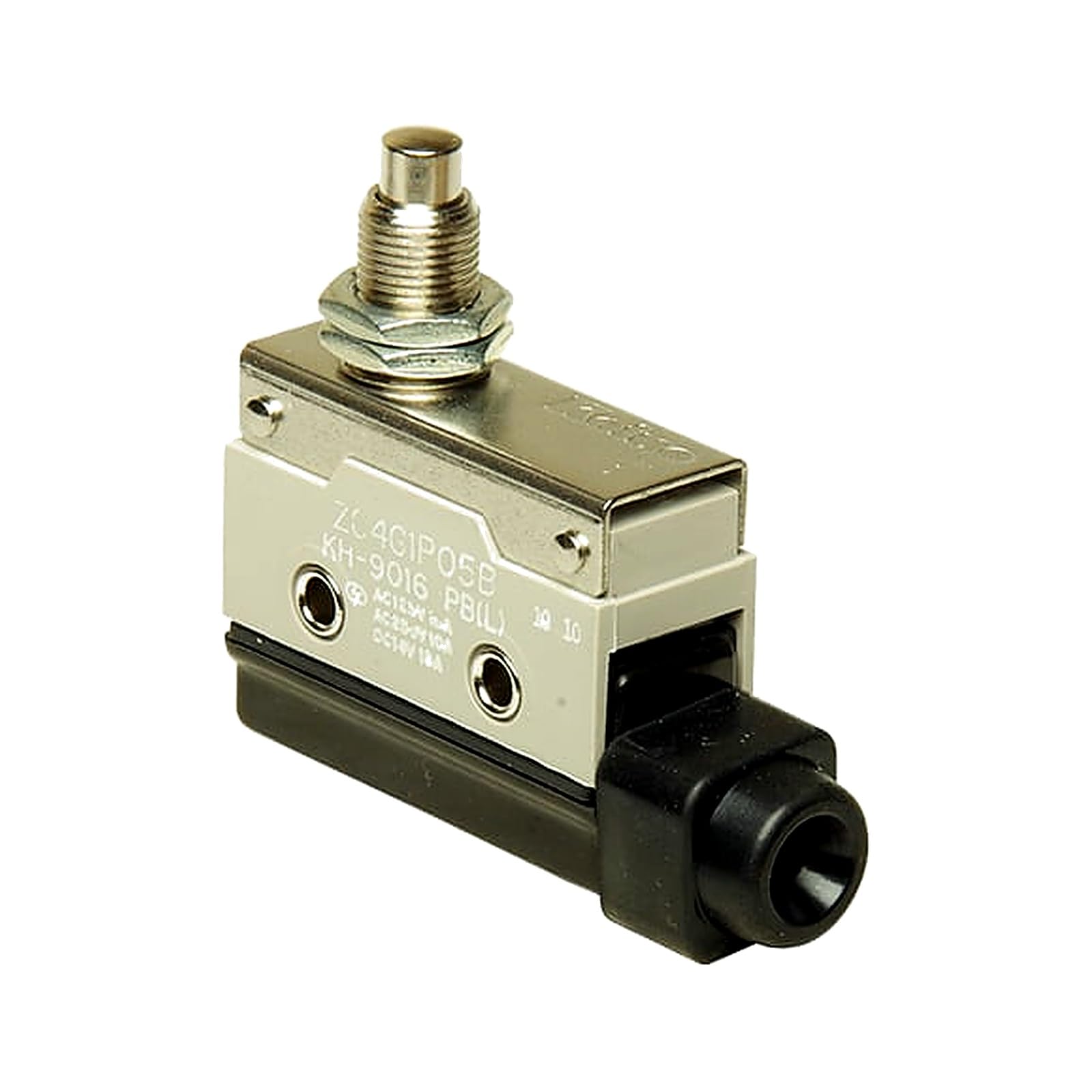

KH-9016-PBL Snap-Action Micro Switch

KH-9016-PBL is the panel-mount plunger variant from the KH-9016 compact micro-switch family. It features SPDT snap-action contacts with a commonly listed electrical rating of 15 A at 125 VAC and screw-terminal connections for straightforward replacement in panels and control devices. The compact plunger actuator is intended for limit-switching and position-sensing tasks where a fast mechanical response is required. Because mechanical dimensions and terminal layouts can vary between manufacturers and sub-variants, verify fit and electrical requirements against your equipment or datasheet before ordering.

• Exact variant: KH-9016-PBL - KH-9016 series compact micro switch with a panel-mount plunger (PBL) actuator.
• Electrical rating: SPDT snap-action contacts, typically listed as 15 A at 125 VAC (datasheet ratings may specify exact conditions).
• Mounting & terminals: Panel/chassis-mount form factor with screw terminal connections for direct replacement in control panels and equipment.
• Mechanical: Compact, snap-action (quick-break) design intended for limit-switching and position-sensing applications.
• Package notes: Sold as a single unit (1 pack). Confirm dimensions and terminal layout against your application before installation.
