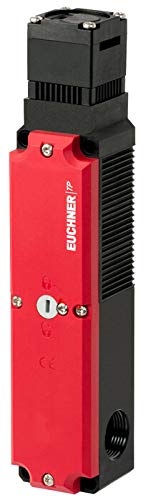

EUCHNER TP3-537K024M TP3-537C024MC1844 Safety switch TP

Can be adjusted in 90° steps Increased overtravel for horizontal and vertical approach direction. Solenoid operating voltage AC/DC 24 V +10%, -15% Guard locking type TP3Closed-circuit current principle, guard locking by spring force. Release by applying voltage to the guard locking solenoid. Switching element 537Slow-action switching contact 1 NC + 1 NC (door monitoring contact) Auxiliary release Is used for releasing the guard locking with the aid of a tool. To protect against tampering, the auxiliary release is sealed with sealing lacquer.

• Safety switch TP, with door monitoring contact, increased vertical overtravel
• Auxiliary release on the front
• With door monitoring contact
• Increased overtravel for horizontal and vertical approach direction.
