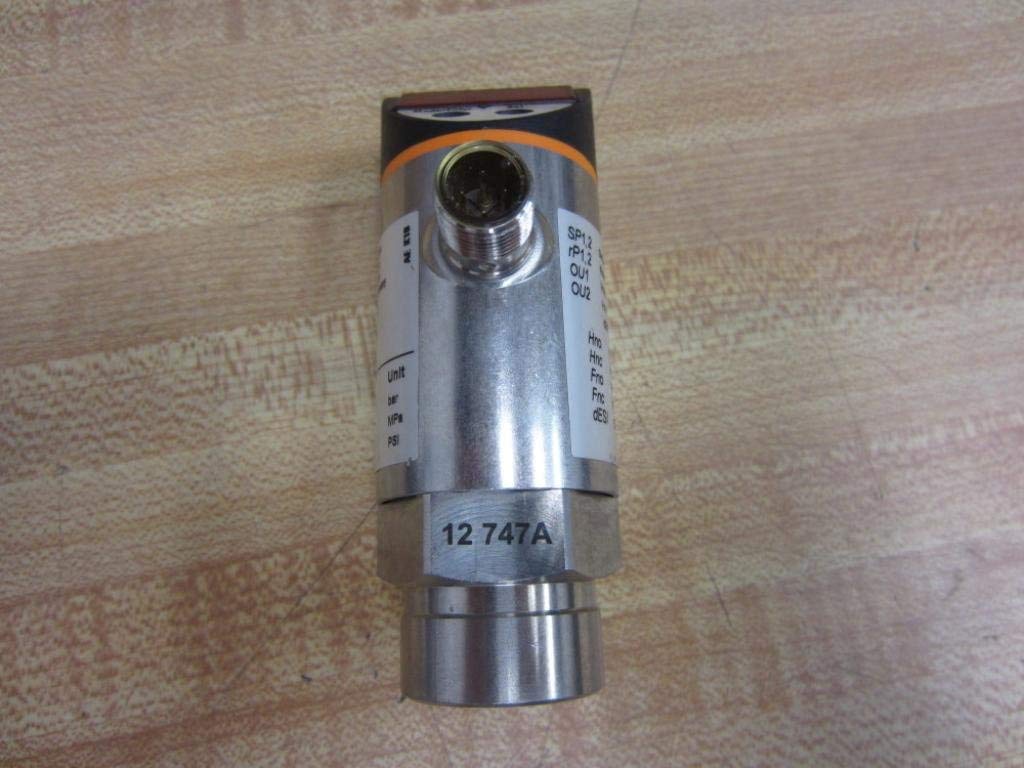

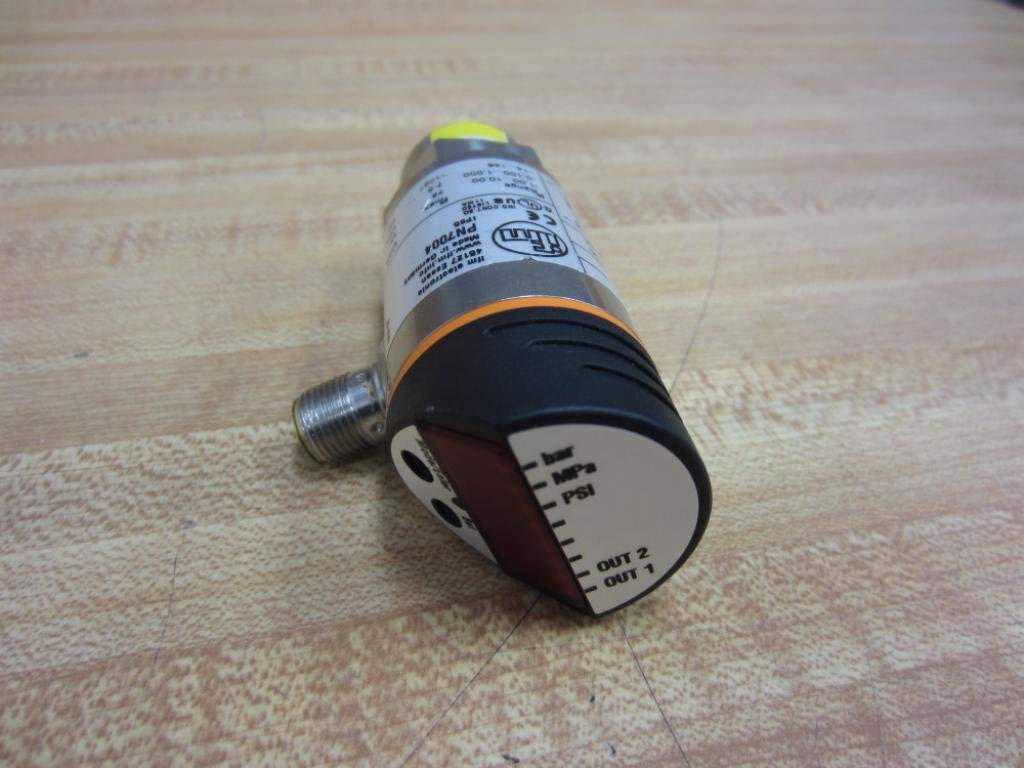

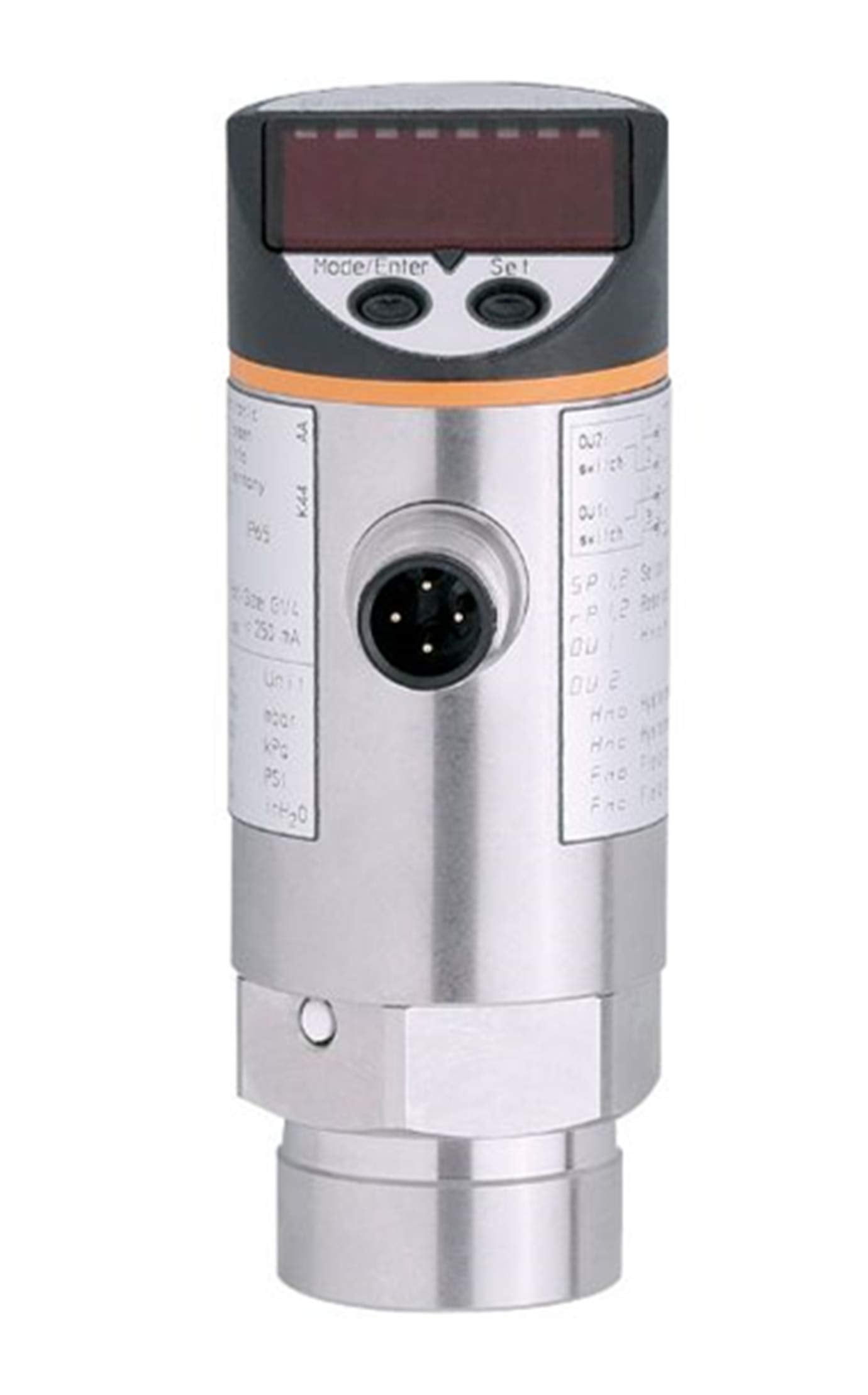

IFM Efector PN7004 Pressure Sensor PN-010-RBR14-QFRKG/US//V

Product characteristics Output signalswitching signal; IO-Link; (configurable) Measuring range -1...10 bar-14.5...145 psi-0.1...1 MPa Process connectionthreaded connection G 1/4 internal thread Application Special featureGold-plated contacts Applicationfor industrial applications Medialiquids and gases Medium temperature [°C]-25...80 Min. bursting pressure 150 bar2175 psi15 MPa Pressure rating 75 bar1087 psi7.5 Mpa Type of pressurerelative pressure Electrical data Operating voltage [V]18...36 DC; (according to EN 50178 SELV/PELV) Current consumption [mA]< 35 Min. insulation resistance [MΩ]100; (500 V DC) Protection classIII Reverse polarity protectionyes Overvoltage protectionyes; (< 40 V) Power-on delay time [s]0.3 Integrated watchdogyes Inputs / outputs Number of inputs and outputsNumber of digital outputs: 2 Outputs Total number of outputs2 Output signalswitching signal; IO-Link; (configurable) Electrical designPNP/NPN Number of digital outputs2 Output functionnormally open / normally closed; (parameterisable) Max. voltage drop switching output DC [V]2 Permanent current rating of switching output DC [mA]250 Switching frequency DC [Hz]< 170 Short-circuit protectionyes Type of short-circuit protectionpulsed Measuring/setting range Measuring range -1...10 bar-14.5...145 psi-0.1...1 MPa Set point SP -0.9...10 bar-12...145 psi-0.09...1 MPa Reset point rP -0.95...9.95 bar-13...144 psi-0.095...0.995 MPa In steps of 0.05 bar1 psi0.005 MPa Factory setting SP1 = 2.50 barrP1 = 2.30 bar SP2 = 7.50 barrP2 = 7.30 bar Accuracy / deviations Switch point accuracy [% of the span]< ± 0,5 Repeatability [% of the span]< ± 0,1; (with temperature fluctuations < 10 K) Characteristics deviation [% of the span]< ± 0,25 (BFSL) / < ± 0,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting) Hysteresis deviation [% of the span]< ± 0,25 Long-term stability [% of the span]< ± 0,05; (per 6 months)

• Two programmable switching outputs
• With long-term stability thanks to high overload protection
• Lifespan of more than 100 million pressure cycles
• Clearly visible 4-digit LED display
• Country-specific pressure units selectable
