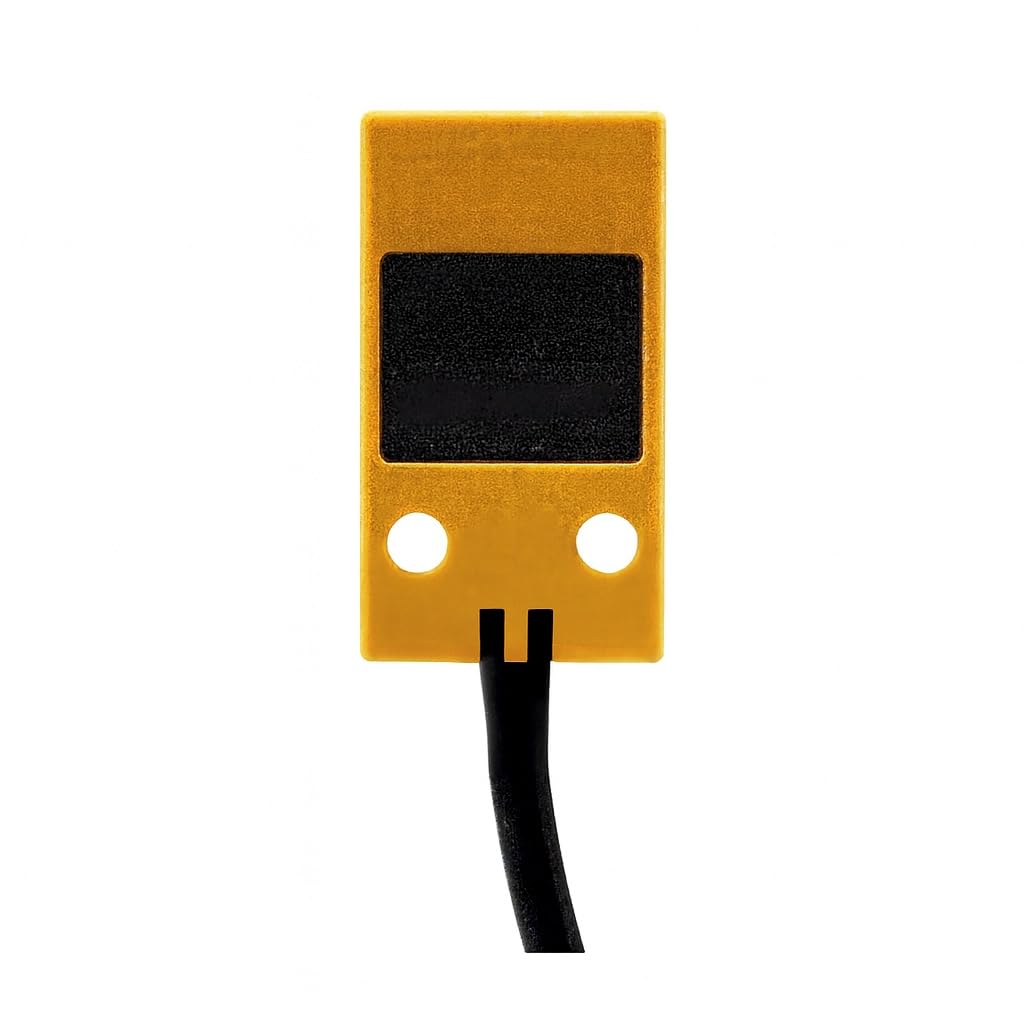

TL-Q5MD1 Inductive Proximity Sensor, 5 mm Sensing Distance, DC 2-Wire NO, 2 m Cable

The TL-Q5MD1 is a rectangular inductive proximity sensor in the TL-Q / TL-N series intended for short-range detection of ferrous targets. It provides a nominal sensing distance of 5 mm (±10%) using the standard 18 × 18 × 1 mm iron test object and connects via a DC 2-wire normally open (NO) circuit with an operating range cited at 10-30 VDC (nominal 12-24 VDC). The selected variant includes a 2 m pre-wired cable for straightforward installation. Rugged design details reported in reference materials include IP67 ingress protection, an ABS housing, and a response frequency near 500 Hz. Please confirm electrical ratings and mounting dimensions with your equipment prior to replacement or installation.

• Exact model: TL-Q5MD1 - rectangular inductive proximity sensor from the TL-Q / TL-N family; selected variant includes a 2 m pre-wired cable.
• Sensing performance: nominal sensing distance 5 mm (typical ±10%); standard test object: iron 18 × 18 × 1 mm for specification reference.
• Electrical: DC 2-wire, normally open (NO) switching; operating range cited as 10-30 VDC (nominal 12-24 VDC) with low leakage current (~0.8 mA).
• Mechanical and durability: rectangular sensing head ~28 × 17 × 17 mm (manufacturer listing); IP67 protection rating and response frequency ≈500 Hz for industrial use.
• Installation notes: pre-wired 2 m cable (selected TL-Q5MD1 2M variant); verify wiring and fitment with your control equipment before installation.
