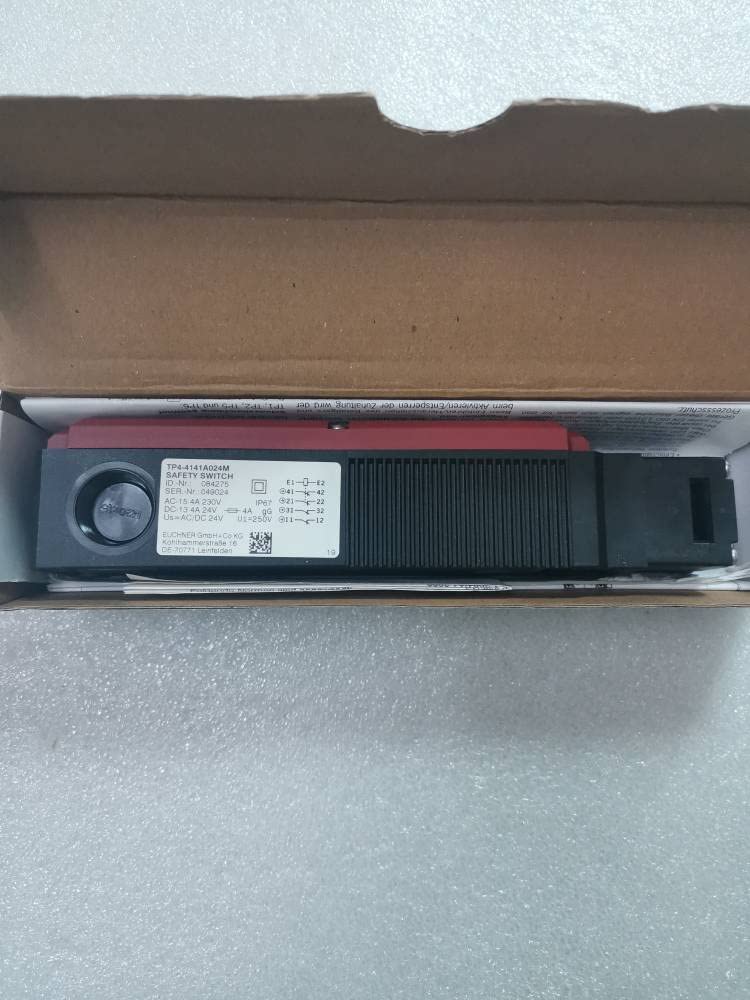

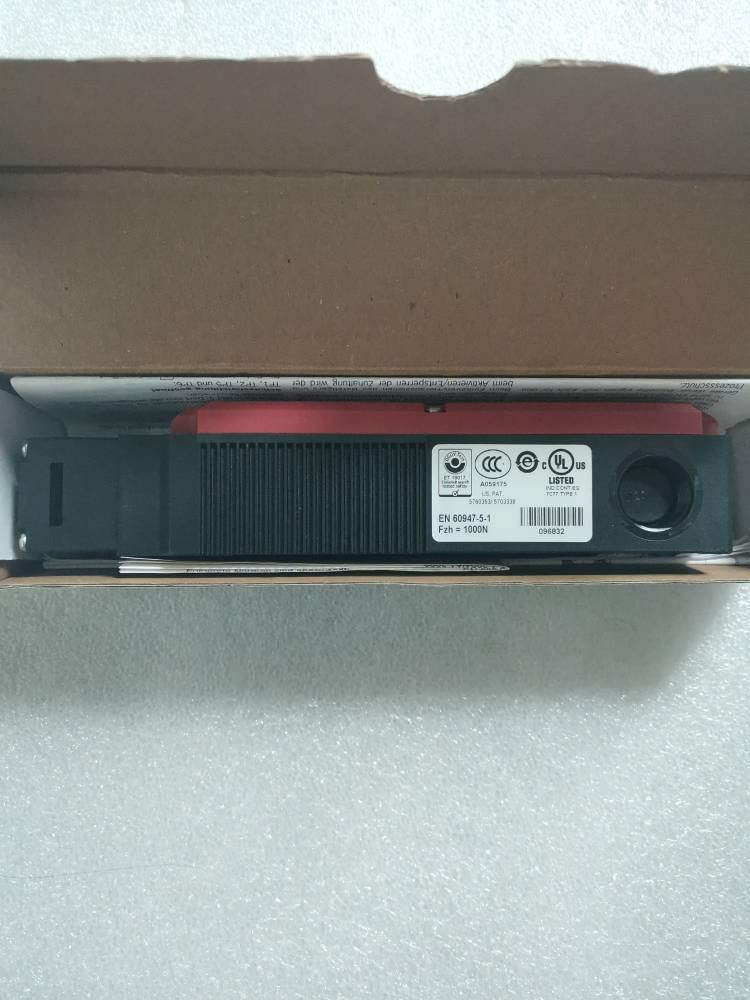

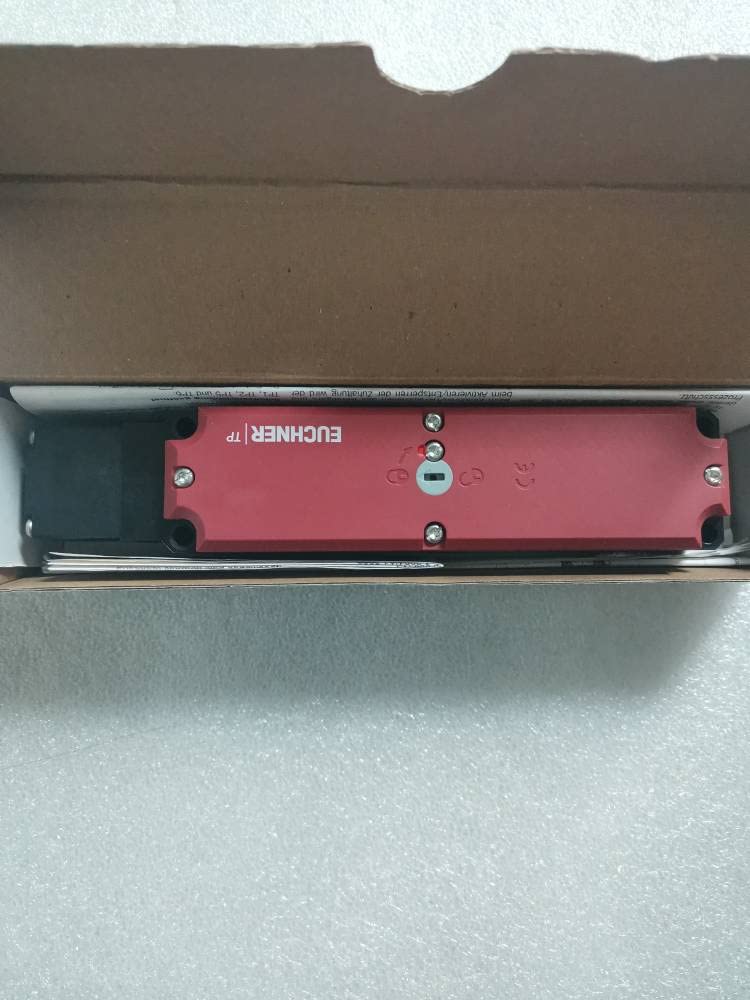

TP4-4141A024M Euchner Safety Switch GUARD LOCK MONITORING

Horizontal and vertical Can be adjusted in 90° steps Increased overtravel for horizontal approach direction Solenoid operating voltage AC/DC 24 V +10%, -15% Guard locking type TP4 Open-circuit current principle, guard locking by applying voltage to the guard locking solenoid. Release by spring force. Switching element 4141 Slow-action switching contact 2 NC + 2 NC (door monitoring contact) Auxiliary release This is used for releasing the guard locking with the aid of a tool. To protect against tampering, the auxiliary release is sealed with sealing lacquer.
