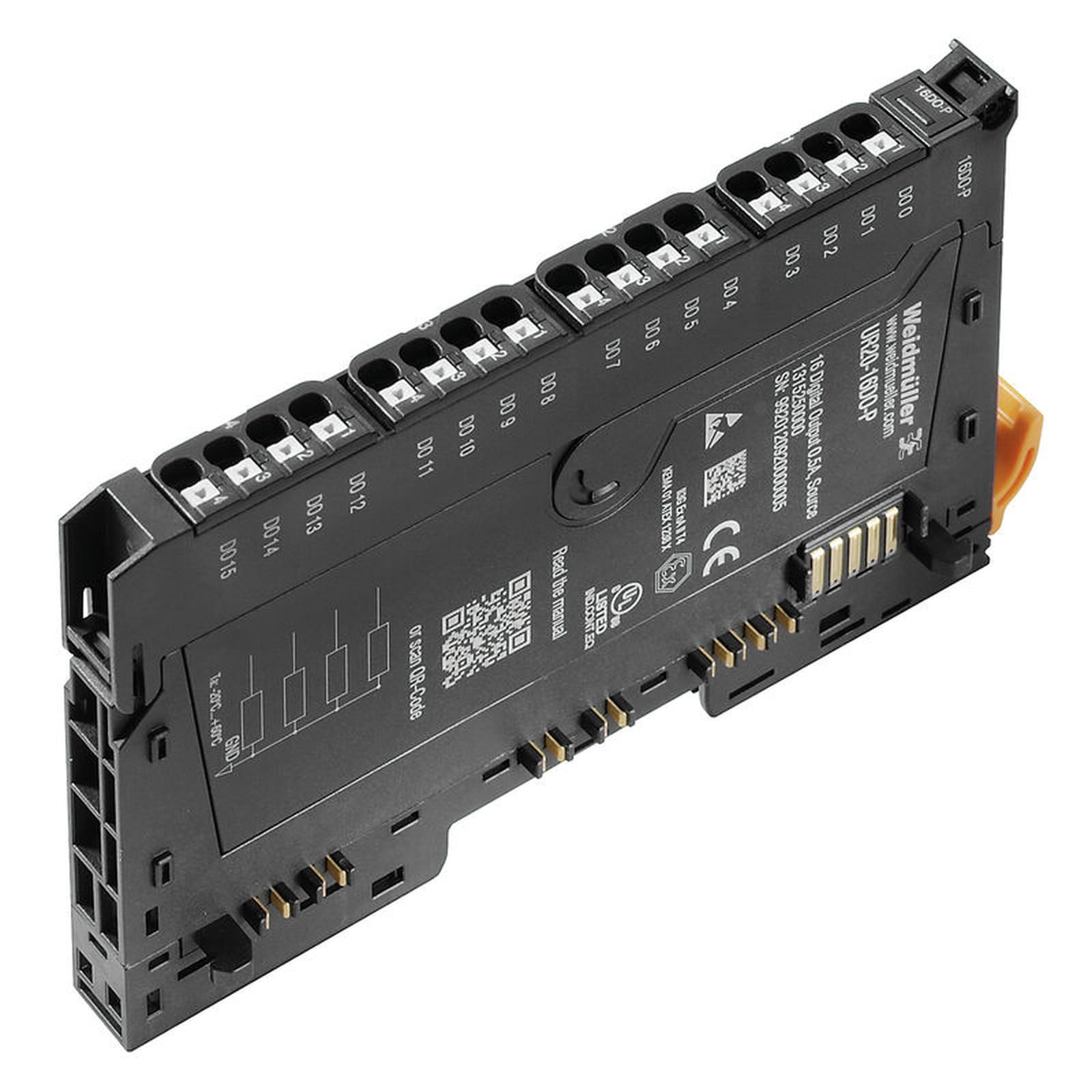

UR20 I/O Module UR20-16DO-P (Part Number 1315250000), 16-Channel Digital Output, DIN Rail

This listing corresponds to the UR20-16DO-P 1315250000 variant from the source UR20 I/O module title family. UR20-16DO-P is a 16-channel digital output remote I/O module used for decentralized actuator/output control in industrial automation systems. According to published technical references, it adopts an IP20 compact body, PUSH IN connection style, and DIN rail cabinet installation profile, with industrial operating temperature coverage for typical control-panel environments. In the package: 1 x UR20-16DO-P digital output I/O module.

• UR20 I/O module variant UR20-16DO-P, Part Number 1315250000; 16-channel digital output design for distributed PLC control architectures.
• Output-side reference performance includes up to 24 V, up to 500 mA per channel, and up to 8 A total module output (application dependent).
• Integrated short-circuit protection design with thermal cut-off and restart behavior supports industrial output reliability.
• Compact IP20 module with approximately 11.5 mm width and PUSH IN wiring, suited for TS 35 DIN rail cabinet integration.
• Package includes 1 x UR20-16DO-P module; this listing corresponds to the UR20-16DO-P 1315250000 variant from the source title family.
