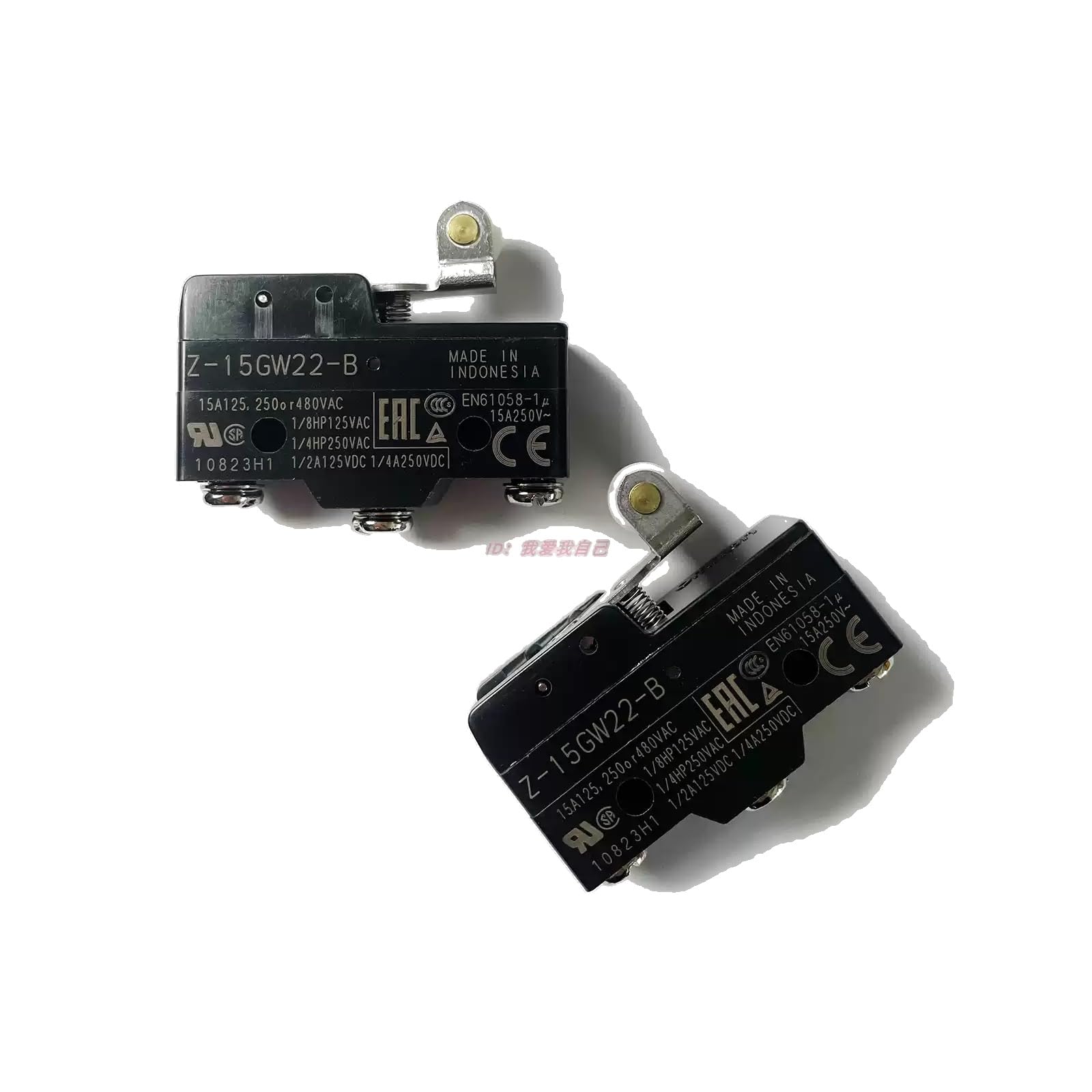

Z-15GW22613-B Z-Series Lever Micro Switch, Swing Lever Actuator, SPDT Snap-Action, AC/DC Rated - 1 Count

The Z-15GW22613-B is a Z-series snap-action lever micro switch intended for use in limit-sensing and control applications. This chassis-style switch uses a swing (lever) actuator and features SPDT snap-action contacts. Electrical ratings printed on the unit include multiple AC and DC voltage points (125 VAC, 250 VAC, 480 VAC; 125 VDC, 250 VDC); consult the official Z-series datasheet to confirm the exact current rating and life expectancy for this specific variant. Fitment may vary across Z-series actuator and terminal variants — verify the part marking and actuator shape against the images and your equipment before ordering.

• Exact model: Z-15GW22613-B — part of the Z-series (Z-15GW-B family) snap-action micro/limit switch (lever actuator).
• Contact configuration: SPDT (single pole, double throw) snap-action contacts suitable for limit sensing and control circuits.
• Electrical markings visible on the unit include AC/DC ratings: 125 VAC, 250 VAC, 480 VAC and 125 VDC, 250 VDC — verify required current rating on the datasheet before use.
• Form and mounting: compact chassis-style housing with a swing/lever actuator (roller/swing lever shown in images); check actuator orientation and terminal layout to confirm fit.
• Common applications: control panels, industrial machinery limit sensing, appliances and other electromechanical assemblies requiring a compact snap-action switch.
