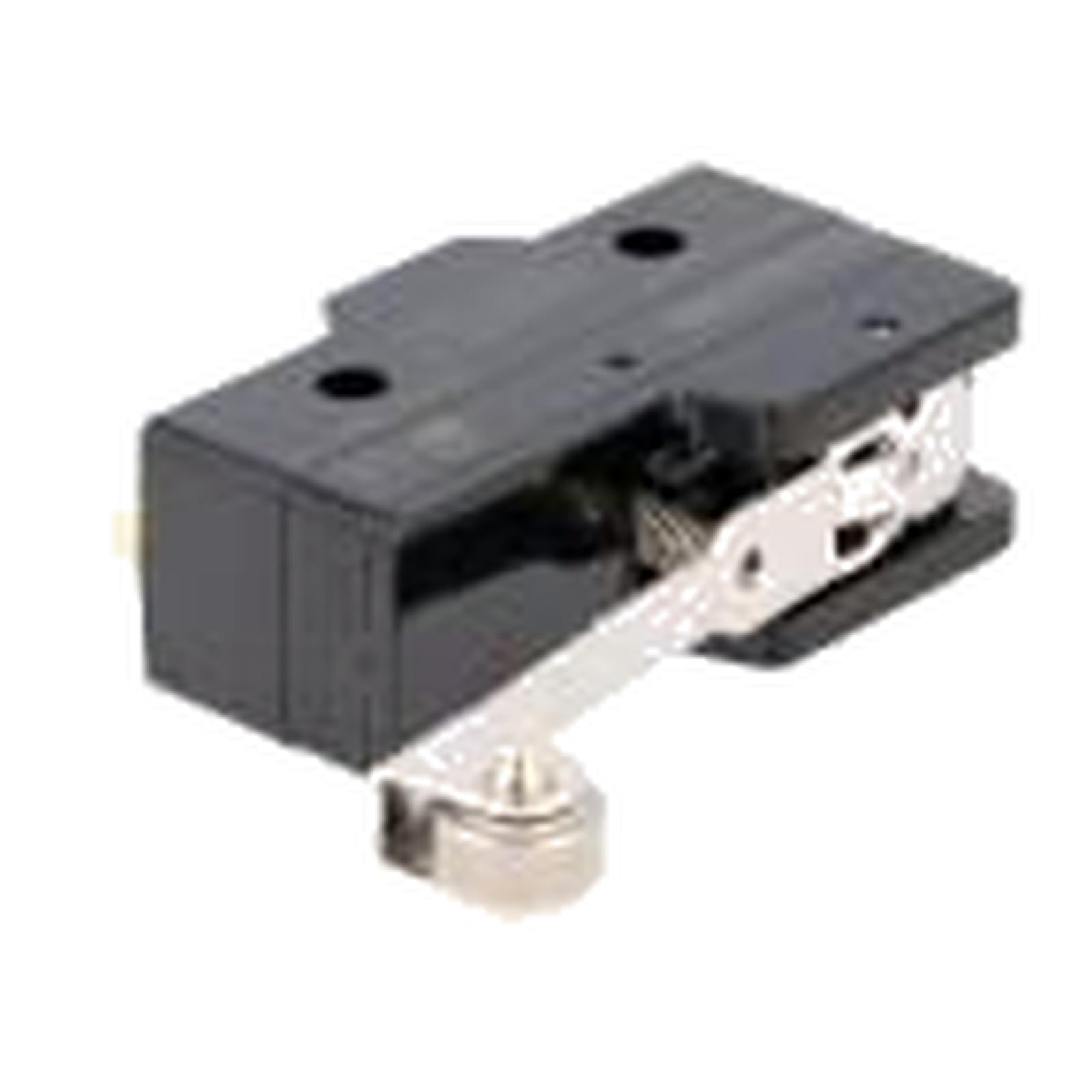

Z15G1703 Limit Switch

The Z15G1703 is a compact Z-series snap-action microswitch offered here as a single unit. It uses an SPDT contact arrangement and is commonly specified on marketplace listings for switching applications at ratings up to 15A for 125/250VAC. The Z-15G form factor supports multiple actuator options - roller lever and pin plunger are typical - and terminal styles may include solder lugs, quick-connect tabs or PCB/solder terminals depending on the specific variant. This part is used for limit, safety and appliance control sensing.

• Exact model: Z15G1703 (Z-15G series) - sold as a single microswitch unit; verify model marking on the part before installation.
• Contact arrangement: SPDT (single pole, double throw) suitable for common limit-switch applications and control panels.
• Actuator styles: roller lever (shown in product images) or pin plunger variants exist for Z-15G family - confirm actuator type matches your equipment.
• Terminals and mounting: market listings show solder lugs, quick-connect tabs or PCB/solder terminal options depending on variant; check photos and terminal type for compatibility.
• Sealed subminiature micro switch for compact sensing, interlock, and snap-action control applications.
